View larger
Images are for illustrative purposes only. Please refer to data sheet for details

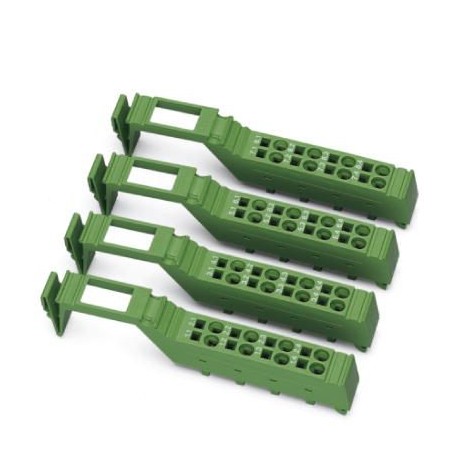

IB IL DI/DO 8-PLSET 2860950 PHOENIX CONTACT Connector set
IB IL DI/DO 8-PLSET
2860950
PHOENIX CONTACT
1 Pcs.
Connector set
Automation > Accessories/spare parts for controls
I/O
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2860950 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 147 (C-6-2017) |
| GTIN | 4017918878856 |
| Weight per Piece (excluding packing) | 65.700 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Connection data
| Conductor cross section solid min. | 0.08 mm² |
|---|---|
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.08 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 28 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 10.0.127242692eCl@ss 4.027250281eCl@ss 4.127250281eCl@ss 5.027259205eCl@ss 5.127242600eCl@ss 6.027249200eCl@ss 7.027249290eCl@ss 8.027249290eCl@ss 9.027242692
| Feature Name | Feature Value |
|---|---|
| Type of electrical accessory/spare part (EF005722) | Plug set |
| Type of mechanical accessory/spare part (EF005994) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
