View larger
Images are for illustrative purposes only. Please refer to data sheet for details

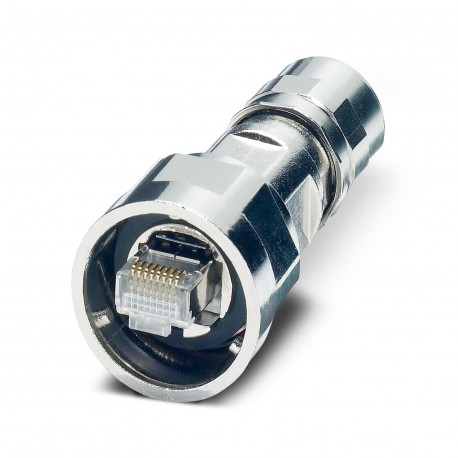

VS-V1-C-RJ45-MNNA-PG9-8-I-5-S 1419182 PHOENIX CONTACT RJ45 connector
VS-V1-C-RJ45-MNNA-PG9-8-I-5-S
1419182
PHOENIX CONTACT
1 Pcs.
RJ45 connector
RJ45 plug-in connector, construction: RJ45, protection index: IP67, number of poles: 8, CAT5 (IEC11801:2002), material: Zinc die-casting, connection type: IDC connection, connection cross-section: AWG 27-24, color: silver
RJ45 plug-in connector, design: RJ45, protection index: IP67, number of poles: 8, 1 GBit/s, CAT5 (IEC 11801:2002), material: Metal, connection type: IDC quick connect, connection section: AWG 27- 24, cable output: straight, color: silver
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1419182 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 350 (C-2-2017) |
| GTIN | 4046356539555 |
| Weight per Piece (excluding packing) | 128.700 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Number of slots | 1 |
| Insertion/withdrawal cycles | 750 |
| Connection method | IDC connection |
| Conductor cross section | 0.11 mm² ... 0.23 mm² |
| Connection cross section AWG | 27 ... 24 (flexible) |
| Max. cable diameter | 5 mm ... 10 mm |
| External cable diameter | 5 mm ... 10 mm |
| Color | silver |
| Wire diameter | 0.36 mm ... 0.51 mm |
| Degree of protection | IP67 |
| Type | RJ45 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Zinc die-cast |
| Cable seal material | PA/EPDM |
Electrical characteristics
| Number of positions | 8 |
|---|---|
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| GRP transmission properties | CAT5 (IEC 11801:2002) CAT5 (IEC 11801:2002) |
| Rated current | 1.75 A |
| Overvoltage category | I |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 72 V (DC) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440101eCl@ss 8.027440101eCl@ss 9.027440101
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 8 |
| Type of housing (EF006980) | Straight |
| Ambient temperature (EF002386) | -40 °C |
| Over voltage category (EF006785) | I |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.11 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.11 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.11 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.11 mm² |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 750 |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
