View larger
Images are for illustrative purposes only. Please refer to data sheet for details

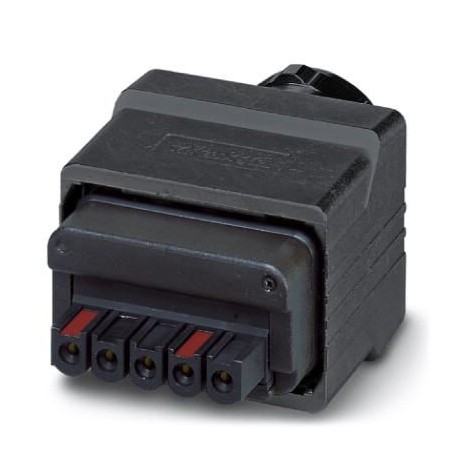

VS-PPC-C2-MSTB-POBK-P13-A5-SP 1657892 PHOENIX CONTACT Power connectors
VS-PPC-C2-MSTB-POBK-P13-A5-SP
1657892
PHOENIX CONTACT
1 Pcs.
Power connectors
Plug-in power connector, protection index: IP65, number of poles: 5, material: PA-GF, connection type: Spring connection, connection section: AWG 18-13, cable outlet: straight, color: black
Connectors > Modular connector (industrial connector)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1657892 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 350 (C-4-2015) |
| GTIN | 4046356131964 |
| Weight per Piece (excluding packing) | 43.700 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General data
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
|---|---|
| Rated current at 40°C | 16 A |
| Rated voltage | 24 V |
| Number of positions | 5 |
| Degree of pollution | 2 |
| Alternative short product description | MSTB connector |
| Locking type | Push Pull |
| Rated voltage (III/3) | 24 V |
| Conductor cross section | 0.75 mm² ... 2.5 mm² |
| Connection cross section AWG | 18 ... 13 |
| Connection method | Spring-cage connection |
| Contact material | Copper alloy |
| Contact carrier material | PA |
| Contact surface material | Gold over nickel |
| Housing material | PA-GF |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
