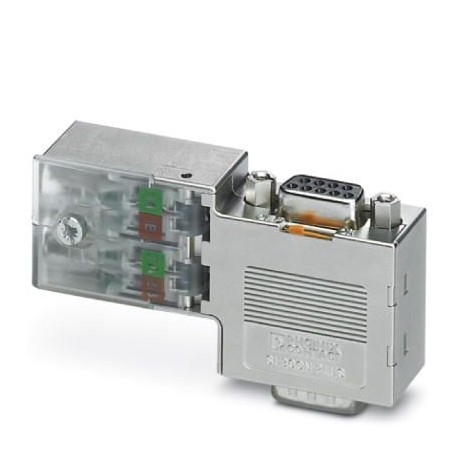

PHOENIX CONTACT SUBCON-PLUS-PROFIB/90/PG/IDC SUBCON-PLUS-PROFIB/90/PG/IDC 2313685 PHOENIX CONTACT D-SUB bus connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SUBCON-PLUS-PROFIB/90/PG/IDC 2313685 PHOENIX CONTACT D-SUB bus connector

SUBCON-PLUS-PROFIB/90/PG/IDC

2313685

PHOENIX CONTACT

1 Pcs.

D-SUB bus connector D-SUB male connector, 9 poles, male, cable entry below 90°, bus system: PROFIBUS DP up to 12 MBit/s with PG-D-SUB female connector for connection of a programming device, closing resistor, connectable via sliding switch, pole diagram: 3, 5, 6, 8; IDC terminal block connection

Connectors > D-Sub connector
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2313685
Packing unit1 pc
Catalog pagePage 375 (C-6-2017)
GTIN4046356514576
Weight per Piece (excluding packing)41.000 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Max. cable diameter8.4 mm
Min. cable diameter7.6 mm
Width16.8 mm
Height34.8 mm
Length72 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 75 °C
Ambient temperature (storage/transport)-25 °C ... 80 °C
Altitude5000 m (For restrictions see manufacturer's declaration)
Degree of protectionIP40

General

Nominal voltage UN5 V
Nominal current IN100 mA
Bus systemPROFIBUS DP
SignalPROFIBUS
Insertion/withdrawal cycles> 200
Test voltage50 V
SUBCON fixing screws4-40 UNC
Tightening torque0.4 Nm
Torque1.2 Nm (Housing screw)
Housing materialABS, metal-plated
Pin assignment3, 5, 6, 8
MTTF6706 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day))
1817 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
155 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day))

Connection data

ConnectionD-SUB connection
Number of positions9
Connection methodD-SUB connector
Termination resistor390 Ω
220 Ω
390 Ω (Can be connected externally)
ConnectionIDC terminal blocks
Connection methodIDC fast connection
Conductor cross section flexible min.0.32 mm²
Conductor cross section flexible max.1 mm²
Conductor cross section solid min.0.32 mm²
Conductor cross section solid max.1 mm²
Min. AWG conductor cross section, flexible22
Max. AWG conductor cross section, flexible18
Conductor cross section AWG min.22
Conductor cross section AWG max.18
ConnectionProgramming connection
Number of positions9
Connection methodD-SUB socket

Standards and Regulations

Free from substances that could impair the application of coatingaccording to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard
Connection in acc. with standardCUL
Noxious gas testISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2313685 Data networking products (EC001132)
Feature Name Feature Value
Number of poles (EF001391) 9
Contact type (EF001587) Male
