View larger
Images are for illustrative purposes only. Please refer to data sheet for details

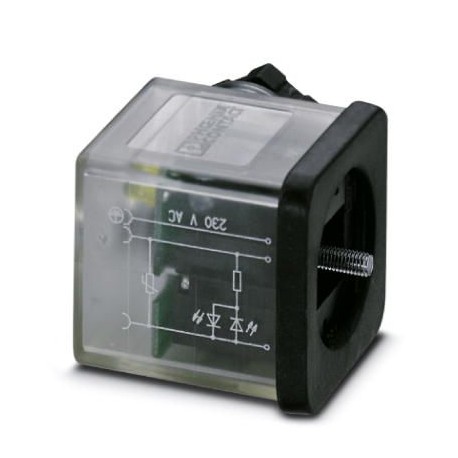

SACC-VB-3CON-M16/A-1L-SV 230V 1452165 PHOENIX CONTACT Valve connectors
SACC-VB-3CON-M16/A-1L-SV 230V
1452165
PHOENIX CONTACT
1 Pcs.
Valve connectors
Valve Connector, Universal, 3-Pole, Valve Connector A, Screw Connection, M16 Cable Gland, Cable Outer Diameter 6 mm ... 8 mm
Connectors > Valve connector (field assembly)
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1452165 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 26 (C-2-2017) |
| GTIN | 4046356536332 |
| Weight per Piece (excluding packing) | 26.800 g |
| Custom tariff number | 85366990 |
| Country of origin | HU (Hungary) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C (valve plug) |
|---|---|
| Degree of protection | IP65 |
General
| Rated current at 40°C | 1.5 A |
|---|---|
| Rated voltage | 230 V AC |
| 230 V DC | |
| Number of positions | 3 |
| Insulation resistance | > 2 GΩ |
| Standards/regulations | Valve connector EN 175301-803 |
| Status display | Yellow LED |
| Protective circuit/component | Varistor |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.25 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Insertion/withdrawal cycles | 50 (Valve connector) |
| Torque | 1.8 Nm ±0.2 Nm (Pressure screw) |
| 0.4 Nm ±0.1 Nm (Central screw) | |
| 0.2 Nm ±0.1 Nm (Contact screw) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Valve plug contact material | CuZn |
| Valve plug contact surface material | CuSn |
| Material housing valve plug | PA |
| Sealing material | NBR |
Standards and Regulations
| Standard designation | Valve connector |
|---|---|
| Standards/regulations | EN 175301-803 |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
