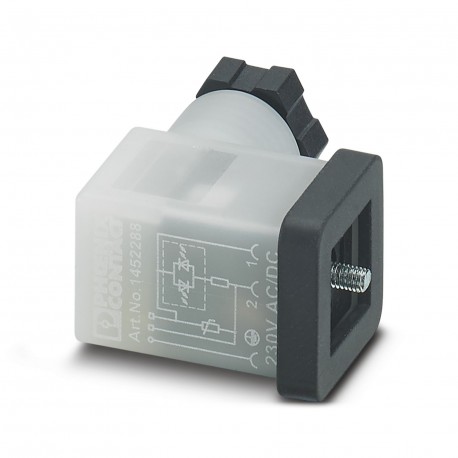

SACC-VB-3CON-M12/C-1L-SV 230V 1452288 PHOENIX CONTACT Valve connectors

SACC-VB-3CON-M12/C-1L-SV 230V

1452288

PHOENIX CONTACT

1 Pcs.

Valve connectors Valve Connector, Universal, 3-Pole, Valve Connector C (8mm), Screw Connection, M12 Cable Gland, Cable Outer Diameter 4mm... 6 mm Valve connectors, Universal, 3-position, Valve connector C (8 mm), Screw connection, cable gland M12, external cable diameter 4 mm ... 6 mm

Connectors > Valve connector (field assembly)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Assembly noteNOTE:Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.
Product properties
Product typeValve connectors
Sensor typeUniversal
Number of positions3
No. of cable outlets1
Shieldedno
Pg screw connectionM12
Data management status
Article revision02
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Seal materialNBR
Material housing valve plugPA
Contact materialCuZn
Contact surface materialCuSn
Dimensions
Dimensional drawingnnohwldmfe.jpg
Width16 mm
Height27.5 mm
Length26.8 mm
External dimensions
Outside diameter4 mm ... 6 mm
Electrical properties
Contact resistance≤ 4 mΩ
Insulation resistance> 2 GΩ
Nominal voltage UN230 V AC
230 V DC
Nominal current IN1.5 A
Protective circuitSurge protection; Varistor
Valve connector characteristics
Fixing screwsM2,5 x 27
Mechanical properties
Mechanical data
Insertion/withdrawal cycles50 (Valve connector)
Signaling
Status displayLED (yellow)
Status display presentYes
Connection data
Connection methodScrew connection
Conductor cross section0.25 mm² ... 0.5 mm²
Connection cross section AWG24 ... 20
Tightening torque1.6 Nm ±0.2 Nm (Pressure screw)
0.4 Nm ±0.1 Nm (Central screw)
0.2 Nm ±0.1 Nm (Contact screw)
Connector
Connection 1
Head designValve connector
Head thread typeC (8 mm)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
Ambient temperature (operation)-25 °C ... 60 °C (valve plug)
Standards and regulations
Standard designationValve connector
Standards/specificationsEN 175301-803

ETIM for 1452288 Sensors (EC003623)
Feature Name Feature Value
Number of poles (EF001391) 3
For cable outer diameter (EF009475) 4 mm
Connectable conductor cross section (EF008200) 0.25 mm²
Rated voltage (EF000228) 230 V
Rated current (EF000227) 1.5 A
Housing material (EF001596) Other
Material of contact surface (EF004020) Other
Pollution degree (EF006786) 3
Inflammability class of insulation material according to UL94 (EF002521) HB
Operating temperature (EF002393) -25 °C
Degree of protection (IP), mounted (EF007466) IP65
Min. number of insertion cycles (EF012212) 50
With PE-connection (EF005600) No
With status indication (EF001602) Yes
