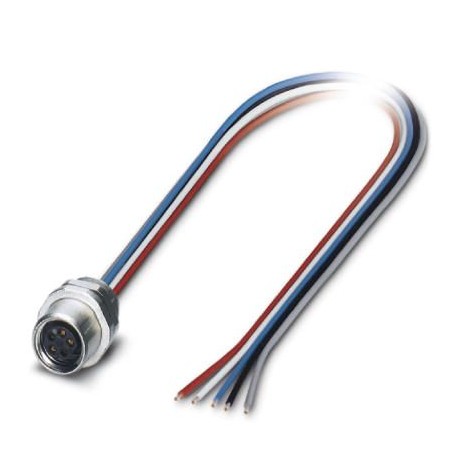

PHOENIX CONTACT SACC-E-M8FS-5CON-M10/0,5 DN SACC-E-M8FS-5CON-M10/0,5 DN 1424233 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-E-M8FS-5CON-M10/0,5 DN 1424233 PHOENIX CONTACT Flush-type connector

SACC-E-M8FS-5CON-M10/0,5 DN

1424233

PHOENIX CONTACT

1 Pcs.

Flush-type connector Conect. plug. to be apar. front wall, DeviceNet™, 5-pole, Connecting female, straight, M8, Front wall mounting, M10, Single stranded wires, cable length: 0.5 m, 0.25 mm², PVC conductor

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1424233
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 31 (C-2-2017)
GTIN4046356712453
Weight per Piece (excluding packing)15.000 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Length of cable0.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP67

General

Rated current at 40°C3 A
Rated voltage30 V AC
30 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingB - inverse
Standards/regulationsM8 connector IEC 61076-2-104
Signal type/categoryDeviceNet™
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodIndividual wires
Mounting typeFront mounting M10

Material

Flammability rating according to UL 94HB
Contact materialCu alloy
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsZinc die-cast, nickel-plated

Cable

Cable typePVC litz wire
Conductor cross section0.25 mm²
AWG signal line24
Conductor structure signal line7x 0.20 mm
Core diameter including insulation1.5 mm ±0.1 mm
Thickness, insulation0.21 mm
Wire colorsgray, red, white, black, blue
Material conductor insulationPVC / UL
Conductor materialTin-plated Cu litz wires
Standards/specificationsM8 connector IEC 61076-2-104
Insulation resistance≥ 20 MΩ*km
Conductor resistance≥ 80 Ω/km
Nominal voltage, cable300 V
Test voltage, cable2000 V AC
Ambient temperature (operation)-40 °C ... 105 °C (cable, fixed installation)
-10 °C ... 105 °C

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1424233 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 5
Type of housing (EF006980) Straight
Rated current In (EF008250) 3 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 30 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Gold
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) HB
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Screened (EF000881) No
With status indication (EF001602) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
