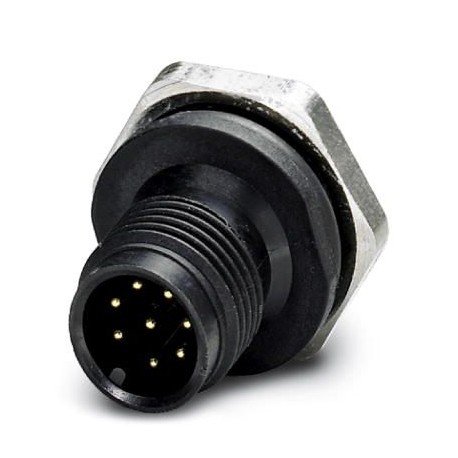

PHOENIX CONTACT SACC-E-M12MS-8CON-M16 PSCUP SACC-E-M12MS-8CON-M16 PSCUP 1436408 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-E-M12MS-8CON-M16 PSCUP 1436408 PHOENIX CONTACT Flush-type connector

SACC-E-M12MS-8CON-M16 PSCUP

1436408

PHOENIX CONTACT

20 Pcs.

Flush-type connector Built-in mounting plug-in connector for sensors/actuators, male, 8-pole, M12, A-coded, front wall mount / M16 threaded screw mount, with solder cups, in plastic design

Cables > Circular connector, mounting (without cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1436408
Packing unit20 pc
Minimum order quantity20 pc
NoteMade to Order (non-returnable)
Catalog pagePage 241 (C-2-2013)
GTIN4046356438353
Weight per Piece (excluding packing)6.300 g
Custom tariff number85366990
Country of originDE (Germany)

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C2 A
Rated voltage30 V
Rated surge voltage0.8 kV
Number of positions8
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodSolder cup
Insertion/withdrawal cycles> 100
Torque3 Nm ... 4 Nm (Installation-side)
Mounting typeFront mounting M16 x 1.5 With flat nut

Material

Flammability rating according to UL 94HB
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsPA 6.6
Sealing materialViton

Cable

Standards/specificationsM12 connector IEC 61076-2-101

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94HB

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
