PHOENIX CONTACT SACC-E-M12MS-5CON-M12 PSCUP SACC-E-M12MS-5CON-M12 PSCUP 1436437 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-E-M12MS-5CON-M12 PSCUP 1436437 PHOENIX CONTACT Flush-type connector

SACC-E-M12MS-5CON-M12 PSCUP

1436437

PHOENIX CONTACT

20 Pcs.

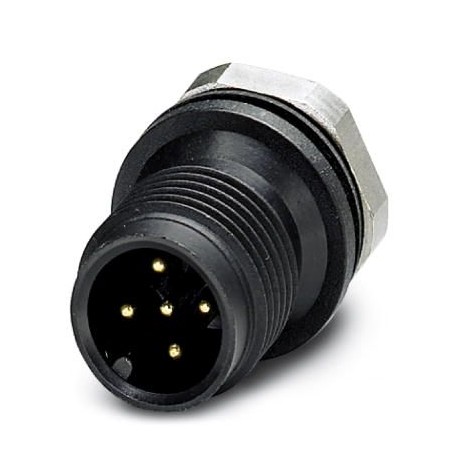

Flush-type connector Plug-in connector mounting incorp. for sensors/actuators, connector, 5 poles, M12, A-coded, front wall mounting/M12 threaded screw mounting, with welding cups, in plastic design

Cables > Circular connector, mounting (without cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1436437
Packing unit20 pc
Minimum order quantity20 pc
NoteMade to Order (non-returnable)
Catalog pagePage 241 (C-2-2013)
GTIN4046356438384
Weight per Piece (excluding packing)3.500 g
Custom tariff number85366990
Country of originDE (Germany)

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C4 A
Rated voltage60 V
Rated surge voltage1.5 kV
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodSolder cup
Insertion/withdrawal cycles> 100
Torque3 Nm ... 4 Nm (Installation-side)
Mounting typeFront mounting M12 x 1 With flat nut

Material

Flammability rating according to UL 94HB
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsPA 6.6
Sealing materialViton

Cable

Standards/specificationsM12 connector IEC 61076-2-101

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94HB

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1436437 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 5
Type of housing (EF006980) Straight
Rated current In (EF008250) 4 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 60 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Gold
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) HB
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Min. number of insertion cycles (EF012212) 100
Screened (EF000881) No
With status indication (EF001602) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
