View larger
Images are for illustrative purposes only. Please refer to data sheet for details

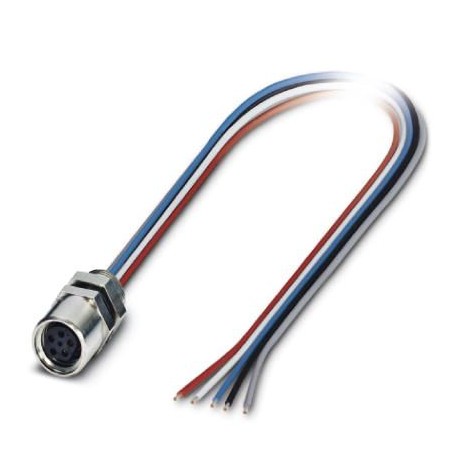

SACC-E-M 8FS-5CON-M 8/0,5 DN 1440106 PHOENIX CONTACT Flush-type connector
SACC-E-M 8FS-5CON-M 8/0,5 DN
1440106
PHOENIX CONTACT
1 Pcs.
Flush-type connector
Conn. plug. Incorp. for bus system, female connection, DeviceNet, 5 poles, M8, screw/wall mounting. c. M8 thread, c. braid thread. PVC 0.5 m, 5 x 0.25 mm²
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1440106 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 22 (PC-2009) |
| GTIN | 4046356481335 |
| Weight per Piece (excluding packing) | 15.300 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 30 V |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | B-coded |
| Standards/regulations | M8 connector IEC 61076-2-104 |
| Signal type/category | DeviceNet™ |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Individual wires |
| Mounting type | Front mounting M8 x 0.5 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | Cu alloy |
| Contact surface material | Au |
| Contact carrier material | PUR / PA 6.6 |
| Material, knurls | Nickel-plated brass |
| Sealing material | Viton |
Cable
| Cable type | PVC litz wire |
|---|---|
| Conductor cross section | 0.25 mm² |
| AWG signal line | 26 |
| Wire colors | White, black, gray, red, blue |
| Material conductor insulation | PVC |
| Conductor material | Tin-plated Cu litz wires |
| Standards/specifications | M8 connector IEC 61076-2-104 |
Standards and Regulations
| Standard designation | M8 connector |
|---|---|
| Standards/regulations | IEC 61076-2-104 |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027143423eCl@ss 5.127143400eCl@ss 6.027279200eCl@ss 7.027440103eCl@ss 8.027440103eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 5 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 4 A |
| Ambient temperature (EF002386) | -25 °C |
| Rated voltage (EF000228) | 30 V |
| Over voltage category (EF006785) | II |
| Pollution degree (EF006786) | 3 |
| Material of contact surface (EF004020) | Gold |
| Housing material (EF001596) | Plastic |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
