View larger
Images are for illustrative purposes only. Please refer to data sheet for details

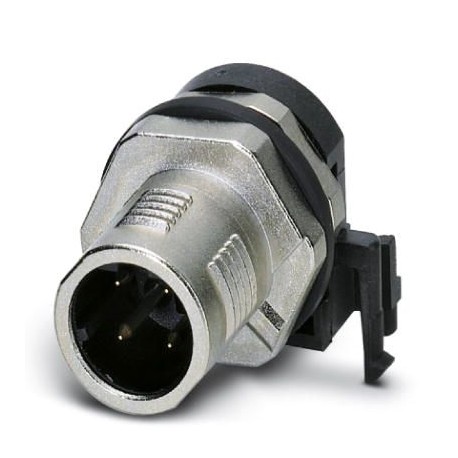

SACC-DSIV-MS-4CON-L90 SH SCO 1439913 PHOENIX CONTACT Flush-type connector
SACC-DSIV-MS-4CON-L90 SH SCO
1439913
PHOENIX CONTACT
10 Pcs.
Flush-type connector
Conect. plug. to be apar. poster wall, 4-pole, Male connector, angled, M12-SPEEDCON, coding: A, Rear mounting, M12 x 1, Soldering pins, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239694
Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1439913 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 30 (PC-2009) |
| GTIN | 4046356476645 |
| Weight per Piece (excluding packing) | 12.070 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 250 V |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Solder pins |
| Mounting type | Rear mounting M12 x 1 With flat nut |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027143423eCl@ss 5.127143400eCl@ss 6.027279200eCl@ss 7.027440103eCl@ss 8.027440103eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Number of control contacts (EF012217) | 4 |
| With PE-connection (EF005600) | No |
| Housing material (EF001596) | Other |
| Material of contact surface (EF004020) | Other |
| Pollution degree (EF006786) | 3 |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Operating temperature (EF002393) | -25 °C |
| Rated current In (EF008250) | 4 A |
