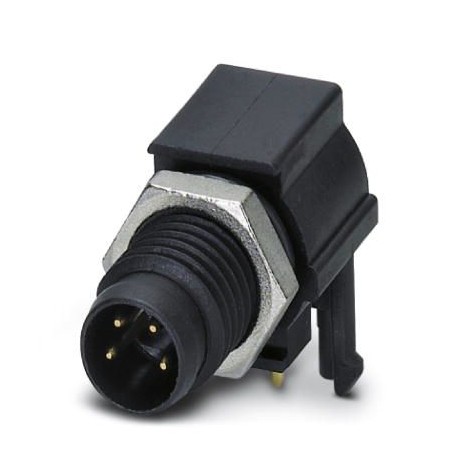

PHOENIX CONTACT SACC-DSIV-M 8MS-4CON-L 90 SACC-DSIV-M 8MS-4CON-L 90 1440096 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-DSIV-M 8MS-4CON-L 90 1440096 PHOENIX CONTACT Flush-type connector

SACC-DSIV-M 8MS-4CON-L 90

1440096

PHOENIX CONTACT

20 Pcs.

Flush-type connector Conect. plug. to be apar. wall poster., 4-pole, Male connector, straight, M8, coding: A, Rear mount, M8 x 1, Wave solder

Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1440096
Packing unit20 pc
Minimum order quantity20 pc
Catalog pagePage 230 (C-2-2013)
GTIN4046356480888
Weight per Piece (excluding packing)4.500 g
Custom tariff number85366990
Country of originDE (Germany)

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C
Degree of protectionIP67

General

Rated current at 40°C4 A
Rated voltage50 V AC
60 V DC
Number of positions4
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodSolder pins
Mounting typeRear mounting M8 x 1 With flat nut

Material

Flammability rating according to UL 94HB
Contact materialCu alloy
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsNickel-plated brass
Sealing materialNBR

Cable

Standards/specificationsM8 connector IEC 61076-2-104

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1440096 Connectors (EC003569)
Feature Name Feature Value
Number of poles (EF001391) 4
Number of control contacts (EF012217) 4
With PE-connection (EF005600) No
Housing material (EF001596) Other
Material of contact surface (EF004020) Other
Pollution degree (EF006786) 3
Inflammability class of insulation material according to UL94 (EF002521) HB
Degree of protection (IP), mounted (EF007466) IP67
Operating temperature (EF002393) -25 °C
Rated current In (EF008250) 4 A
