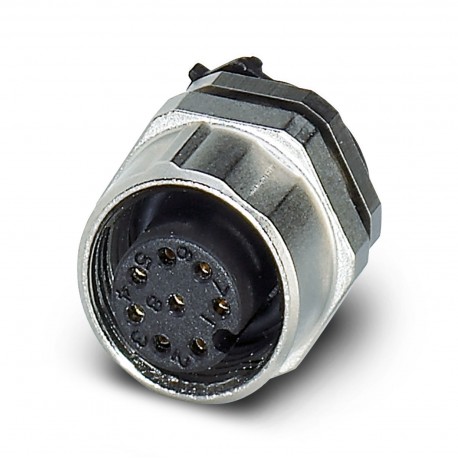

SACC-DSIV-FS-8CON-L180 SCOTHR 1542790 PHOENIX CONTACT Panel feed-through

SACC-DSIV-FS-8CON-L180 SCOTHR

1542790

PHOENIX CONTACT

60 Pcs.

Panel feed-through Conect. plug. to be apar. wall poster., 8-pole, Female connection, straight, M12-SPEEDCON, coding: B , Rear mounting, M12 x 1, THR weld connection, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1239963 Device connector rear mounting, 8-position, Socket, straight, M12-SPEEDCON, coding: A, Rear mounting, M12 x 1, THR solder connection, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239963

Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Order information:Lock nut is included in the scope of delivery
Mounting
Mounting typeRear mounting M12 x 1 With flat nut
Assembly noteWith flat nut
Product properties
Product typeCircular connectors (device side)
Number of positions8
Shieldedno
CodingA
Thread typeM12
Data management status
Article revision08
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Seal materialNBR
Contact materialCu alloy
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN60 V
Nominal current IN4 A
Connection data
Conductor connection
Connection methodTHR solder connection
Contact connection typeSocket
Connector
Connection 1
Head designSocket
Head cable outletstraight
Head thread typeM12
Head locking typeSPEEDCON
CodingA
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP67
IP67
Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

ETIM for 1542790 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 8
Type of housing (EF006980) Straight
Rated current In (EF008250) 4 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 60 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Gold
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) HB
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Screened (EF000881) No
With status indication (EF001602) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
