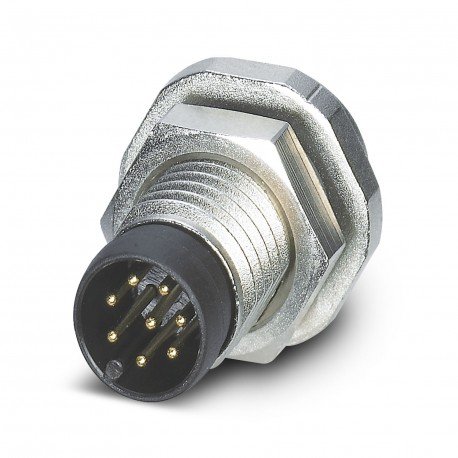

PHOENIX CONTACT SACC-DSI-M8MS-8CON-M8-L180 SACC-DSI-M8MS-8CON-M8-L180 1424238 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-DSI-M8MS-8CON-M8-L180 1424238 PHOENIX CONTACT Flush-type connector

SACC-DSI-M8MS-8CON-M8-L180

1424238

PHOENIX CONTACT

20 Pcs.

Flush-type connector Conect. plug. to be apar. wall poster., Universal, 8-pole, Male connector, straight, M8, Rear mount, M8 x 1, Wave soldering Rear Device Connector, Universal, 8-pin, Connector, Straight, M8, Rear Mount, M8 x 1, Wave Soldering

Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1424238
Packing unit20 pc
Catalog pagePage 226 (C-2-2013)
GTIN4046356712507
Weight per Piece (excluding packing)5.830 g
Custom tariff number85366990
Country of originDE (Germany)

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
Degree of protectionIP67

General

Rated current at 40°C1.5 A
Rated voltage30 V AC
30 V DC
Rated surge voltage0.8 kV
Number of positions8
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodSolder pins
Torque1 Nm ... 1.5 Nm (Installation-side)
Mounting typeRear mounting M8 x 1 With flat nut

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR
Additional material specificationsEP (Grout material)

Cable

Standards/specificationsM8 connector IEC 61076-2-104

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1424238 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 8
Type of housing (EF006980) Straight
Rated current In (EF008250) 1.5 A
Ambient temperature (EF002386) -40 °C
Rated voltage (EF000228) 30 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Gold
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) HB
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Screened (EF000881) No
With status indication (EF001602) No
