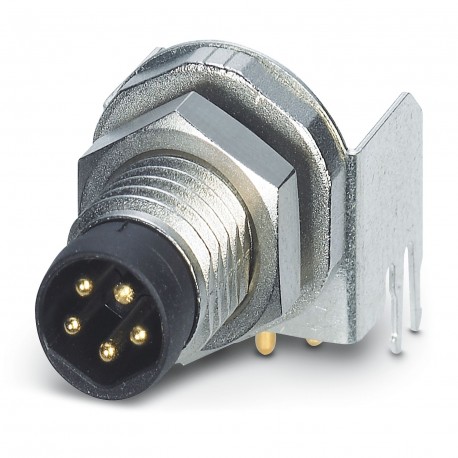

SACC-DSI-M8MS-5CON-M8-L90 DN 1424240 PHOENIX CONTACT Flush-type connector

SACC-DSI-M8MS-5CON-M8-L90 DN

1424240

PHOENIX CONTACT

20 Pcs.

Flush-type connector Conect. plug. to be apar. wall poster., 5-pole, Male connector, angled, M8, Rear mount, M8 x 1, Wave solder, encoding: B - reverse Device Connector Rear Panel, 5 Pole, Pin, Angled, M8, Rear Panel Mount, M8 x 1, Wave Soldering, Code: B - Inverse

Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1424240
Packing unit20 pc
NoteMade to Order (non-returnable)
Catalog pagePage 228 (C-2-2013)
GTIN4046356712521
Weight per Piece (excluding packing)6.790 g
Custom tariff number85366990
Country of originDE (Germany)

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C
Degree of protectionIP67

General

Rated current at 40°C3 A
Rated voltage30 V AC
30 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingB - inverse
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodSolder pins
Mounting typeRear mounting M8 x 1 With flat nut

Material

Flammability rating according to UL 94HB
Contact materialCu alloy
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsZinc die-cast, nickel-plated

Cable

Standards/specificationsM8 connector IEC 61076-2-104

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1424240 Connectors (EC003569)
Feature Name Feature Value
Mounting method (EF000003) Back wall mounting
Screw-in thread (EF012303) M8
With shield connection (EF002535) Yes
Number of poles (EF001391) 5
Number of control contacts (EF012217) 5
With PE-connection (EF005600) No
Coating housing (EF001601) Nickel-plated
Material of contact surface (EF004020) Other
Inflammability class of insulation material according to UL94 (EF002521) HB
Degree of protection (IP), mounted (EF007466) IP67
Ambient temperature (EF002386) 85 °C
Operating temperature (EF002393) -25 °C
Rated current In (EF008250) 3 A
With thread (EF003723) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
