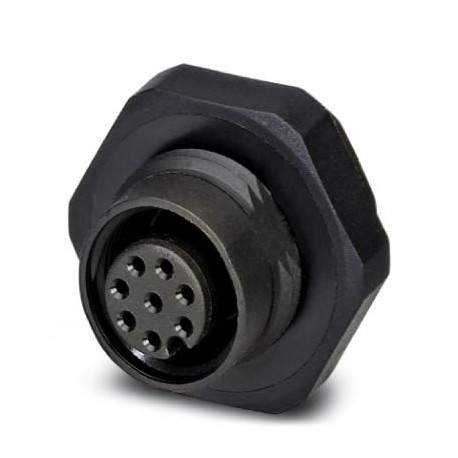

PHOENIX CONTACT SACC-DSI-M12FS-8CON-L180P SACC-DSI-M12FS-8CON-L180P 1436343 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-DSI-M12FS-8CON-L180P 1436343 PHOENIX CONTACT Flush-type connector

SACC-DSI-M12FS-8CON-L180P

1436343

PHOENIX CONTACT

20 Pcs.

Flush-type connector Built-in mounting connector for sensors/actuators, female, 8-pole, M12, A-coded, backwall mount/screw mount with Pg9 thread, with straight weld connection, plastic design

Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1436343
Packing unit20 pc
Minimum order quantity20 pc
NoteMade to Order (non-returnable)
Catalog pagePage 263 (C-2-2013)
GTIN4046356438315
Weight per Piece (excluding packing)7.210 g
Custom tariff number85366990
Country of originDE (Germany)

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C2 A
Rated voltage30 V
Rated surge voltage0.8 kV
Number of positions8
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodSolder pins
Insertion/withdrawal cycles> 100
Torque3 Nm ... 4 Nm (Installation-side)
Mounting typeRear mounting Pg9 With locking nut

Material

Flammability rating according to UL 94HB
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsPA 6.6
Sealing materialViton

Cable

Conductor cross section0.25 mm²
Conductor structure signal line14x 0.15 mm
Core diameter including insulation1.15 mm ±0.07 mm
Thickness, insulation0.21 mm
Standards/specificationsM12 connector IEC 61076-2-101
Insulation resistance≥ 20 MΩ*km
Conductor resistance≤ 57.6 mΩ/m
Nominal voltage, cable300 V
Test voltage, cable2000 V AC
Ambient temperature (operation)-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (cable, flexible installation)

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94HB

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1436343 Connectors (EC003569)
Feature Name Feature Value
Type of plug-in contact, outer side (EF005528) Female (bus)
Mounting method (EF000003) Back wall mounting
Screw-in thread (EF012303) PG9
With shield connection (EF002535) No
Number of poles (EF001391) 8
Number of control contacts (EF012217) 8
With PE-connection (EF005600) No
Housing material (EF001596) Other
Material of contact surface (EF004020) Other
Inflammability class of insulation material according to UL94 (EF002521) HB
Min. number of insertion cycles (EF012212) 100
Degree of protection (IP), mounted (EF007466) IP67
Ambient temperature (EF002386) 85 °C
Operating temperature (EF002393) -25 °C
Rated current In (EF008250) 2 A
With thread (EF003723) Yes
