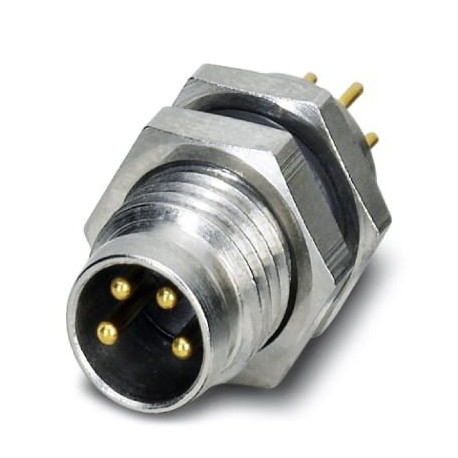

SACC-DSI-M 8MS-4CON-L180 1694347 PHOENIX CONTACT Flush-type connector

SACC-DSI-M 8MS-4CON-L180

1694347

PHOENIX CONTACT

20 Pcs.

Flush-type connector Conect. plug. to be apar. wall poster., Universal, 4-pole, Male connector, straight, M8, Rear mount, M8 x 1, Wave soldering

Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1694347
Packing unit20 pc
Minimum order quantity20 pc
Catalog pagePage 226 (C-2-2013)
GTIN4017918178680
Weight per Piece (excluding packing)4.340 g
Custom tariff number85366990
Country of originDE (Germany)

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
Degree of protectionIP67

General

Rated current at 40°C4 A
Rated voltage50 V AC
60 V DC
Rated surge voltage1.5 kV
Number of positions4
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodSolder pins
Torque1 Nm ... 1.5 Nm (Installation-side)
Mounting typeRear mounting M8 x 1 With locking nut

Material

Flammability rating according to UL 94HB
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsNickel-plated brass
Sealing materialNBR
Additional material specificationsEP (Grout material)

Cable

Standards/specificationsM8 connector IEC 61076-2-104

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Connection in acc. with standardCUL
Flammability rating according to UL 94HB

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1694347 Connectors (EC003569)
Feature Name Feature Value
Mounting method (EF000003) Back wall mounting
Screw-in thread (EF012303) M8
With shield connection (EF002535) No
Number of poles (EF001391) 4
Number of control contacts (EF012217) 4
With PE-connection (EF005600) No
Housing material (EF001596) Brass
Coating housing (EF001601) Nickel-plated
Material of contact surface (EF004020) Other
Inflammability class of insulation material according to UL94 (EF002521) HB
Degree of protection (IP), mounted (EF007466) IP67
Ambient temperature (EF002386) 85 °C
Operating temperature (EF002393) -40 °C
Rated current In (EF008250) 4 A
With thread (EF003723) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
