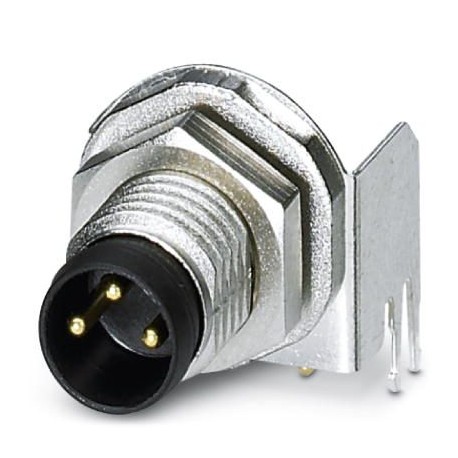

PHOENIX CONTACT SACC-DSI-M 8MS-3CON-L90 SH SACC-DSI-M 8MS-3CON-L90 SH 1456035 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-DSI-M 8MS-3CON-L90 SH 1456035 PHOENIX CONTACT Flush-type connector

SACC-DSI-M 8MS-3CON-L90 SH

1456035

PHOENIX CONTACT

20 Pcs.

Flush-type connector Conect. plug. to be apar. wall poster., 3-pole, Male connector, angled, M8, Rear mount, M8 x 1, Wave solder

Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1456035
Packing unit20 pc
Minimum order quantity20 pc
Catalog pagePage 228 (C-2-2013)
GTIN4046356605922
Weight per Piece (excluding packing)4.500 g
Custom tariff number85366990
Country of originDE (Germany)

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
Degree of protectionIP67

General

Rated current at 40°C4 A
Rated voltage50 V AC
60 V DC
Rated surge voltage1.5 kV
Number of positions3
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodSolder pins
Torque1 Nm ... 1.5 Nm (Installation-side)
Mounting typeRear mounting M8 x 1 With flat nut

Material

Flammability rating according to UL 94HB
Contact materialCu alloy
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Cable

Standards/specificationsM8 connector IEC 61076-2-104
Ambient temperature (operation)

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1456035 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 3
Type of housing (EF006980) Angled
Rated current In (EF008250) 4 A
Ambient temperature (EF002386) -40 °C
Rated voltage (EF000228) 48 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Gold
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) HB
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Screened (EF000881) Yes
With status indication (EF001602) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
