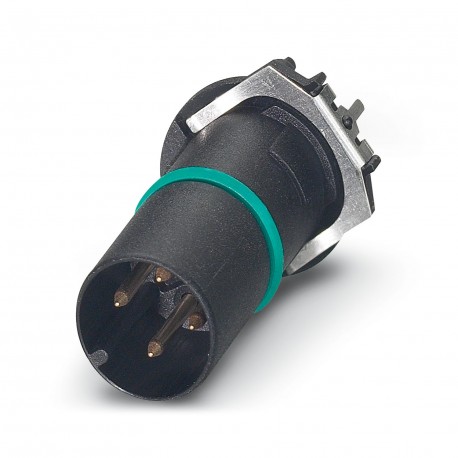

SACC-CI-M12MS- 4CON-SH TOR 32 1457500 PHOENIX CONTACT Flush-type connector
SACC-CI-M12MS-4CON-SH TOR 32
1457500
PHOENIX CONTACT
100 Pcs.
Flush-type connector
Contact holder, 4-pole, Male connector, straight, M12, coding: A, Printed circuit board mounting, THR solder connection, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1239827
Contact carrier, 4-position, Pin, straight, M12, coding: A, PCB mounting, THR solder connection, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239827
Connectors > Contact insert for circular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
Product properties
| Product type | Contact insert |
| Application | Signal |
| Number of positions | 4 |
| Seal present | yes |
| Shielded | yes |
| Coding | A |
| Thread type | M12 |
| Data management status | |
| Article revision | 12 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 2.5 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 250 V |
| Nominal current IN | 4 A |
Connection data
| Connection method | THR solder connection |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
Connector
| Connection 1 | |
| Head design | Pin |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | A |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | > 100 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection (when plugged in) | IP67 (correctly plugged in and locked) |
| Degree of protection | IP67 (correctly plugged in and locked) |
| IP67, when plugged in | |
| Ambient temperature (operation) | -25 °C ... 85 °C |
| -40 °C ... 85 °C (without mechanical actuation) | |
Standards and regulations
| M12 | |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
Mounting
| Mounting type | PCB mounting |
Packaging specifications
| Type of packaging | Belt |
| Delivery state | with assembly pad |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
