View larger
Images are for illustrative purposes only. Please refer to data sheet for details

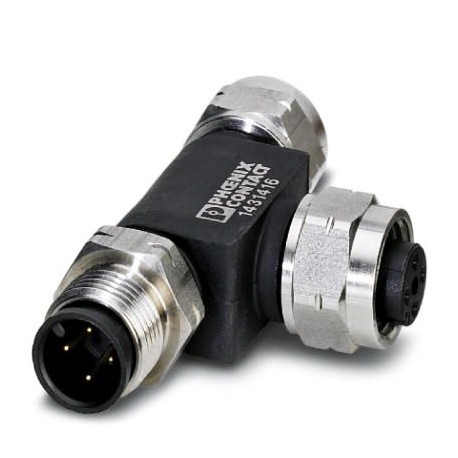

SAC-4P-M12T/2XM12 FF VA 1431416 PHOENIX CONTACT T distributor
SAC-4P-M12T/2XM12 FF VA
1431416
PHOENIX CONTACT
5 Pcs.
T distributor
Distributor T, FOUNDATION Fieldbus, PROFIBUS PA, 4-pole, unshielded, Straight connector M12, coding: A, a Straight female M12, coding: A and Straight female M12, coding: A, parallel bleed nozzle
Automation > Sensor actuator adapter
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1431416 |
|---|---|
| Packing unit | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 436 (C-2-2017) |
| GTIN | 4046356431637 |
| Weight per Piece (excluding packing) | 27.300 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 | |
| IP68 | |
| IP69K |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 4 |
| Color handle area | black |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Signal type/category | FOUNDATION Fieldbus |
| FOUNDATION Fieldbus | |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Stainless steel |
| Sealing material | NBR |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Flammability rating according to UL 94 | HB |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127260700eCl@ss 6.027279200eCl@ss 7.027279218eCl@ss 8.027440102eCl@ss 9.027440106
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | T-adapter |
| Screened (EF000881) | No |
| Housing material (EF001596) | Other |
| Ambient temperature (EF002386) | 90 °C |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP), mounted (EF007466) | IP65 |
| Material thread ring (EF012304) | Other |
| Rated voltage (EF000228) | 48 V |
| Rated current In (EF008250) | 4 A |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| Pollution degree (EF006786) | 1 |
| Material of contact surface (EF004020) | Nickel/gold |
