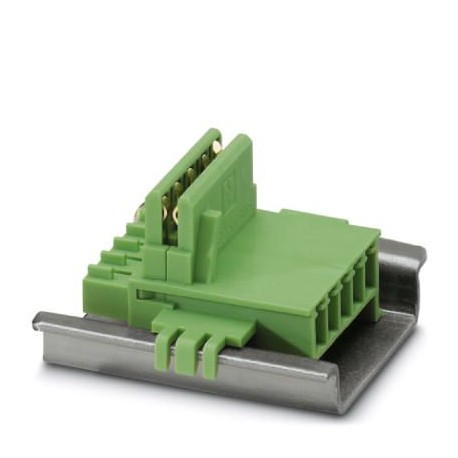

ME 22,5 TBUS 1,5/ 5-ST-3,81 GN 2707437 PHOENIX CONTACT DIN rail bus connectors
ME 22,5 TBUS 1,5/ 5-ST-3,81 GN
2707437
PHOENIX CONTACT
50 Pcs.
DIN rail bus connectors
Rail bus connectors, color: green, rated current: 8 A (parallel contacts), rated voltage (III/2): 125 V, number of poles: 5, pitch: 3.81 mm, mounting: Rail mounting, lock: without, fixing type: without, packaging type: packed in box, Items with gold contacts, bus connectors for connection with electronics boxes, 5 contacts in parallel
Connectors > Printed circuit board connector
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2707437 |
|---|---|
| Packing unit | 50 pc |
| Catalog page | Page 433 (C-5-2017) |
| GTIN | 4017918911928 |
| Weight per Piece (excluding packing) | 4.900 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Technical data
| Connection in acc. with standard | CUL |
|---|---|
| Nominal voltage UN | 150 V |
| Nominal current IN | 8 A |
| Indicator1 | CUL1 |
| Number of positions | 5 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440309eCl@ss 8.027440309eCl@ss 9.027440309
| Feature Name | Feature Value |
|---|---|
| Modular spacing contacts (EF007326) | 3.81 mm |
| Modular spacing connections (EF006827) | 3.81 mm |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 125 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Type of electric connection (EF003961) | Other |
| Suitable for PCB thickness (EF007253) | 1.8 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
