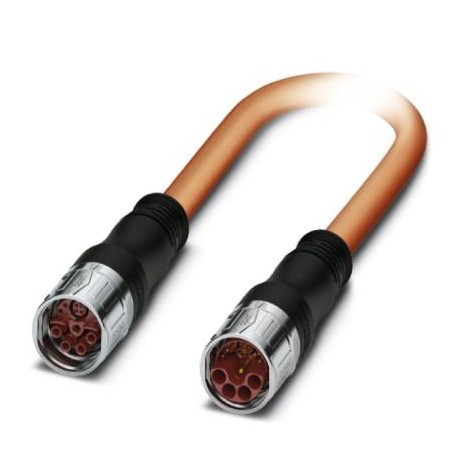

K-8E-M23M8/2,0-H00/M23F8-C5-S 1622247 PHOENIX CONTACT Connector in molded plastic on both sides
K-8E-M23M8/2,0-H00/M23F8-C5-S
1622247
PHOENIX CONTACT
2 Pcs.
Connector in molded plastic on both sides
Plug-in connector coated with plastic on both sides, series: KSH, M23-Female, straight coated by plastic extrusion, number of poles: 4+4+4+PE, Lock type: SPEEDCON, to M23-Male, straight coated by plastic extrusion, number of poles: 4+4+4+PE, Lock type: SPEEDCON, cable length: 2 m, shielded: yes, outer wrap color: orange RAL 2003, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1244565
Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1622247 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 2 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 232 (C-2-2017) |
| GTIN | 4055626070032 |
| Weight per Piece (excluding packing) | 875.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Connector specifications
| Type | straight plastic-sheathed |
|---|---|
| Housing material | PUR |
| Thread type | M23 |
| Locking type | SPEEDCON locking |
| Degree of protection | IP67, when in locked state |
| IP68, when in locked state | |
| Number of positions | 4+4+4+PE |
| Direction of rotation | Standard |
| Type of contact | Socket |
| Insertion/withdrawal cycles | 100 |
| Max. current | 30 A |
| Voltage | 630 V AC |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
Cable specifications
| Type of cable | HDSL11Y |
|---|---|
| Signal type | CAT5 |
| Transmission speed | 100 Mbps (Data interface) |
| Shielded | yes |
| Cable structure | (5x 2.5 + 4x 0.34/C + 4x 0.5) C |
| Cable structure (AWG) | (14 AWG/ 5 + 22 AWG/ 4c + 20 AWG) C |
| External cable diameter | 14.6 mm ±0.4 mm |
| Outer sheath, material | PUR |
| Material wire insulation | TPE |
| External sheath, color | orange RAL 2003 |
| Single wire, color | Black 1, black 2, black 3, black 4, green/yellow Power wires + PE |
| brown, violet, black 5, green Signal wires | |
| blue, yellow, white, orange Data wires | |
| Nominal voltage, cable | 1000 V (300 V signal) |
| Test voltage | 4 kV (1.5 kV signal) |
| Rated current | 26 A (Power, according to DIN VDE 0298-4 tab. 11/5) |
| 8 A (Signal, according to DIN VDE 0298-4 tab. 11/5) | |
| 3.6 A (Data, according to DIN VDE 0298-4 tab. 11/5) | |
| Smallest bending radius, fixed installation | 73 mm |
| Smallest bending radius, movable installation | 148 mm |
| Number of bending cycles | 1000000 |
| Traversing path | 6 m |
| Acceleration | 30 m/s² |
| Ambient temperature for fixed installation | -40 °C ... 80 °C |
| Ambient temperature for flexible installation | -30 °C ... 60 °C |
| UL AWM style | 20234 / 10492 (80°C/1000 V) |
| Special properties | Flexible cable conduit capable |
| Flame resistance | IEC 60332-1-2 |
| Halogen-free | According to EN 50267-2-1 |
| Resistance to oil | EN 60811-2-1 |
Connector specifications (second page)
| Type | straight plastic-sheathed |
|---|---|
| Housing material | PUR |
| Thread type | M23 |
| Locking type | SPEEDCON locking |
| Degree of protection | IP67, when in locked state |
| IP68, when in locked state | |
| Number of positions | 4+4+4+PE |
| Direction of rotation | Standard |
| Type of contact | Pin |
| Insertion/withdrawal cycles | 100 |
| Max. current | 30 A |
| Voltage | 630 V AC |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Cable length (EF000536) | 2 m |
| Halogen free (EF000025) | No |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Rated current In (EF008250) | 26 A |
