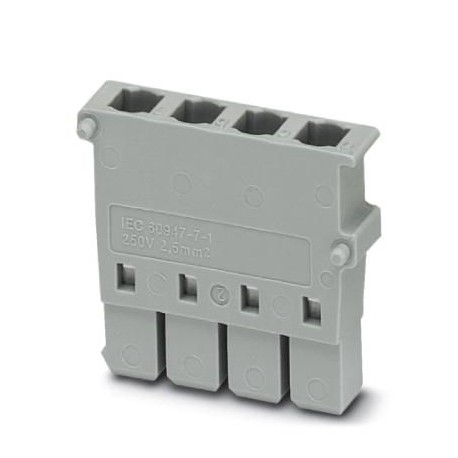

PHOENIX CONTACT CP 2,5-4L-Z CP 2,5-4L-Z 3041943 PHOENIX CONTACT Connector housing View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP 2,5-4L-Z 3041943 PHOENIX CONTACT Connector housing

CP 2,5-4L-Z

3041943

PHOENIX CONTACT

50 Pcs.

Connector housing Connector housing, rated voltage: 250 V, rated current: 10 A, number of connections: 4, number of poles: 4, connection type: Crimped connection, Sizing cross-section: 1.5 mm², cross-section: 0.5 mm² - 2.5 mm², mounting type: Snap-in mounting, color: gray

Connectors > Housing for rectangular connectors
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3041943
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 315 (CL1-2011)
GTIN4017918975302
Weight per Piece (excluding packing)1.750 g
Custom tariff number85472000
Country of originDE (Germany)

General

Number of positions4
Number of levels1
Number of connections4
Potentials4
Nominal cross section2.5 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Maximum load current10 A (with a 2.5 mm² conductor cross section)
Rated surge voltage4 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.77 W
Ambient temperature (operation)-40 °C ... 160 °C
Maximum load current10 A (with a 2.5 mm² conductor cross section)
Nominal current IN10 A
Nominal voltage UN250 V
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width5.2 mm
Length23.5 mm
Height13 mm
Drill hole spacing6.15 mm

Connection data

Connection methodPlug connection
Stripping length10 mm
Connection in acc. with standardIEC 61984
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.14
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible20
Max. AWG conductor cross section, flexible14
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²

Standards and Regulations

Connection in acc. with standardCUL
IEC 61984
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3041943 Connectors (EC000437)
Feature Name Feature Value
Width (EF000008) 5.2 mm
Height (EF000040) 23.5 mm
Coating housing (EF001601) Other
Housing colour (EF000136) Grey
Position cable feed (EF008218) Other
With cable screw gland (EF000735) No
Mounting method of the cable gland (EF012210) Other
With hinged lid (EF000117) No
With distance piece (EF005072) No
With sealing (EF005610) No
Operating temperature (EF002393) -60 °C
EMC-version (EF001062) No
