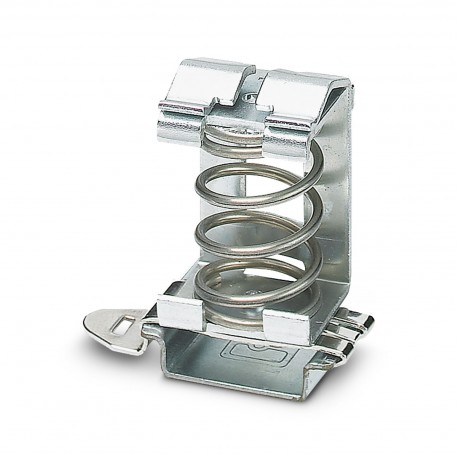

PHOENIX CONTACT SKS 20-SNS35 SKS 20-SNS35 3062809 PHOENIX CONTACT Shield connection terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SKS 20-SNS35 3062809 PHOENIX CONTACT Shield connection terminal block

SKS 20-SNS35

3062809

PHOENIX CONTACT

10 Pcs.

Shield connection terminal block Terminal block for screen connection, for screen support on busbars Shield connection terminal block, for applying the shield to busbars

Automation > Shield connection clamp
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeShield connection clamp
Pitch24.7 mm
Number of connections1
Number of rows1
Data management status
Article revision00
Electrical properties
Maximum power dissipation for nominal condition1.02 W
Connection data
Grounding footYes
Conductor cross section rigid10 mm² ... 20 mm²
Cross section AWG8 ... 4 (converted acc. to IEC)
Conductor cross section flexible10 mm² ... 20 mm²
Conductor cross section, flexible [AWG]8 ... 4 (converted acc. to IEC)
Dimensions
Width24.7 mm
Height65.3 mm
Pitch24.7 mm
Material specifications
Colorsilver-colored
MaterialSteel
Cable/line
External cable diameter5 mm ... 20 mm
Mechanical properties
Mechanical data
Open side panelNo
Mounting
Mounting typeNS 35/7,5
NS 35/15
