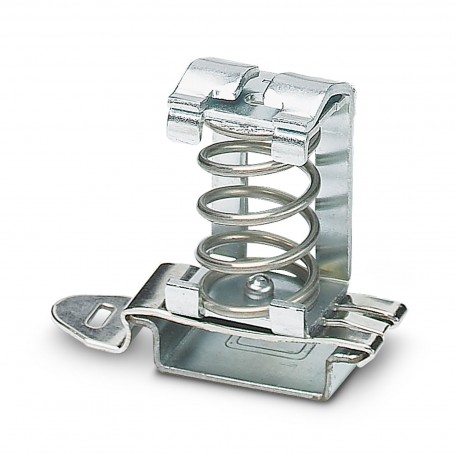

PHOENIX CONTACT SKS 14-SNS35 SKS 14-SNS35 3062799 PHOENIX CONTACT Shield connection terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SKS 14-SNS35 3062799 PHOENIX CONTACT Shield connection terminal block

SKS 14-SNS35

3062799

PHOENIX CONTACT

10 Pcs.

Shield connection terminal block Terminal block for screen connection, for screen support on busbars Shield connection terminal block, for applying the shield to busbars

Automation > Shield connection clamp
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeShield connection clamp
Pitch19 mm
Number of connections1
Number of rows1
Data management status
Article revision00
Electrical properties
Maximum power dissipation for nominal condition0.77 W
Connection data
Grounding footYes
Conductor cross section rigid4 mm² ... 13.5 mm²
Cross section AWG10 ... 6 (converted acc. to IEC)
Conductor cross section flexible4 mm² ... 13.5 mm²
Conductor cross section, flexible [AWG]10 ... 6 (converted acc. to IEC)
Dimensions
Width19 mm
Height56.8 mm
Pitch19 mm
Material specifications
Colorsilver-colored
MaterialSteel
Cable/line
External cable diameter3 mm ... 14 mm
Mechanical properties
Mechanical data
Open side panelNo
Mounting
Mounting typeNS 35/7,5
NS 35/15
