View larger
Images are for illustrative purposes only. Please refer to data sheet for details

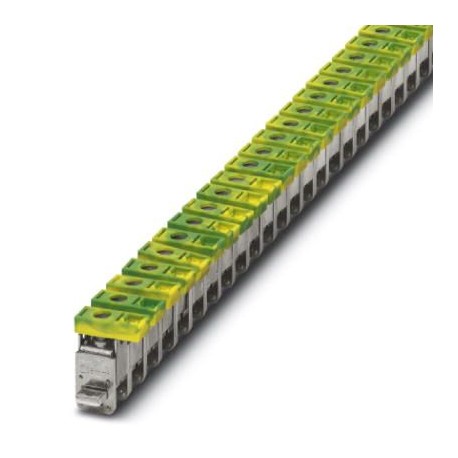

AKG 35 GNYE 0424026 PHOENIX CONTACT Connection terminal block
AKG 35 GNYE
0424026
PHOENIX CONTACT
50 Pcs.
Connection terminal block
Connection terminal, rated voltage: 300 V, rated current: 125 A, connection type: Screw connection, Sizing section: 35 mm², section: 2.5 mm² - 35 mm², mounting: Neutral busbar, color: yellow-green
Automation > Busbar terminal
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0424026 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 599 (C-3-2017) |
| GTIN | 4017918002053 |
| Weight per Piece (excluding packing) | 19.000 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Color | green-yellow |
|---|---|
| Insulating material | PA |
| Nominal cross section | 35 mm² |
| Flammability rating according to UL 94 | V2 |
| Maximum load current | 125 A (with 35 mm² conductor cross section) |
| Maximum power dissipation for nominal condition | 4.06 W |
| Connection in acc. with standard | IEC / EN |
| Nominal current IN | 125 A |
| Maximum load current | 125 A (with 35 mm² conductor cross section) |
| Nominal voltage UN | 300 V |
Connection data
| Conductor cross section solid min. | 2.5 mm² |
|---|---|
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section flexible min. | 2.5 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Conductor cross section AWG min. | 14 |
| Conductor cross section AWG max. | 2 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 2.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 35 mm² |
| 2 conductors with same cross section, solid min. | 1.5 mm² |
| 2 conductors with same cross section, solid max. | 16 mm² |
| 2 conductors with same cross section, stranded min. | 1.5 mm² |
| 2 conductors with same cross section, stranded max. | 16 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 16 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 1.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 10 mm² |
| Connection method | Screw connection |
| Stripping length | 16 mm |
| Screw thread | M6 |
| Tightening torque, min | 3.2 Nm |
| Tightening torque max | 3.7 Nm |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| IEC / EN | |
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
