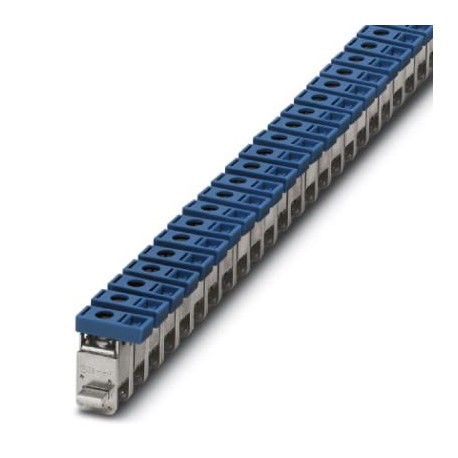

AKG 35 BU 0424013 PHOENIX CONTACT Connection terminal block, Connection method Screw connection, Load curren..
AKG 35 BU
0424013
PHOENIX CONTACT
50 Pcs.
Connection terminal block, Connection method Screw connection, Load current : 125 A, Cross section: 2.5 mm² - 35 mm², Width: 14.3 mm, Color: blue
Connection terminal, rated voltage: 300 V, rated current: 125 A, connection type: Screw connection, Dimensioning section: 35 mm², section: 2.5 mm² - 35 mm², mounting: Neutral busbar, color: blue
Automation > Busbar terminal
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Color | blue |
|---|---|
| Insulating material | PA |
| Nominal cross section | 35 mm² |
| Flammability rating according to UL 94 | V2 |
General
| Maximum load current | 125 A (with 35 mm² conductor cross section) |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Nominal current IN | 125 A |
| Maximum load current | 125 A (with 35 mm² conductor cross section) |
| Nominal voltage UN | 300 V |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
| Result of bending test | Test passed |
| Bending test rotation speed | 10 rpm |
| Bending test turns | 135 |
| Bending test conductor cross section/weight | 2.5 mm² / 0.7 kg |
| 25 mm² / 4.5 kg | |
| 35 mm² / 6.8 kg | |
| Tensile test result | Test passed |
| Conductor cross section tensile test | 2.5 mm² |
| Tractive force setpoint | 50 N |
| Conductor cross section tensile test | 25 mm² |
| Tractive force setpoint | 135 N |
| Conductor cross section tensile test | 35 mm² |
| Tractive force setpoint | 190 N |
| Result of voltage-drop test | Test passed |
| Requirements, voltage drop | ≤ 3.2 mV |
| Result of temperature-rise test | Test passed |
| Short circuit stability result | Test passed |
| Conductor cross section short circuit testing | 25 mm² |
| Short-time current | 3 kA |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Dimensions
| Length | 27 mm |
|---|---|
| Width | 14.3 mm |
Connection data
| Conductor cross section solid min. | 2.5 mm² |
|---|---|
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section flexible min. | 2.5 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Conductor cross section AWG min. | 14 |
| Conductor cross section AWG max. | 2 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 2.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 35 mm² |
| 2 conductors with same cross section, solid min. | 1.5 mm² |
| 2 conductors with same cross section, solid max. | 16 mm² |
| 2 conductors with same cross section, stranded min. | 1.5 mm² |
| 2 conductors with same cross section, stranded max. | 16 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 16 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 1.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 10 mm² |
| Connection method | Screw connection |
| Stripping length | 16 mm |
| Screw thread | M6 |
| Tightening torque, min | 3.2 Nm |
| Tightening torque max | 3.7 Nm |
