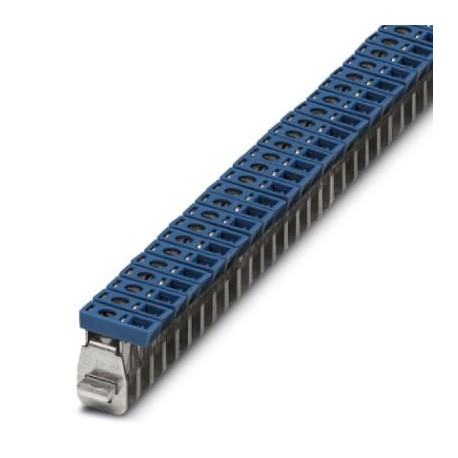

AKG 16 BU 0423014 PHOENIX CONTACT Connection terminal block
AKG 16 BU
0423014
PHOENIX CONTACT
50 Pcs.
Connection terminal block
Connection terminal, rated current: 76 A, connection type: Screw connection, Dimensioning section: 16 mm², section: 1.5 mm² - 16 mm², mounting: Neutral busbar, colour: blue
Automation > Busbar terminal
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0423014 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 599 (C-3-2017) |
| GTIN | 4017918001995 |
| Weight per Piece (excluding packing) | 10.430 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Color | blue |
|---|---|
| Insulating material | PA |
| Nominal cross section | 16 mm² |
| Flammability rating according to UL 94 | V2 |
| Maximum load current | 76 A (with 16 mm² conductor cross section) |
| Maximum power dissipation for nominal condition | 2.43 W |
| Nominal current IN | 76 A |
| Maximum load current | 76 A (with 16 mm² conductor cross section) |
| Nominal voltage UN | 300 V |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
| Result of bending test | Test passed |
| Bending test rotation speed | 10 rpm |
| Bending test turns | 135 |
| Bending test conductor cross section/weight | 1.5 mm² / 0.4 kg |
| 16 mm² / 2.9 kg | |
| Tensile test result | Test passed |
| Conductor cross section tensile test | 1.5 mm² |
| Tractive force setpoint | 40 N |
| Conductor cross section tensile test | 16 mm² |
| Tractive force setpoint | 100 N |
| Result of voltage-drop test | Test passed |
| Requirements, voltage drop | ≤ 3.2 mV |
| Result of temperature-rise test | Test passed |
| Short circuit stability result | Test passed |
| Conductor cross section short circuit testing | 16 mm² |
| Short-time current | 1.92 kA |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Connection data
| Conductor cross section solid min. | 1.5 mm² |
|---|---|
| Conductor cross section solid max. | 16 mm² |
| Conductor cross section flexible min. | 1.5 mm² |
| Conductor cross section flexible max. | 16 mm² |
| Conductor cross section AWG min. | 16 |
| Conductor cross section AWG max. | 6 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 16 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 16 mm² |
| 2 conductors with same cross section, solid min. | 1.5 mm² |
| 2 conductors with same cross section, solid max. | 6 mm² |
| 2 conductors with same cross section, stranded min. | 1.5 mm² |
| 2 conductors with same cross section, stranded max. | 6 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 1.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 10 mm² |
| Connection method | Screw connection |
| Stripping length | 16 mm |
| Screw thread | M5 |
| Tightening torque, min | 2.5 Nm |
| Tightening torque max | 3 Nm |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
