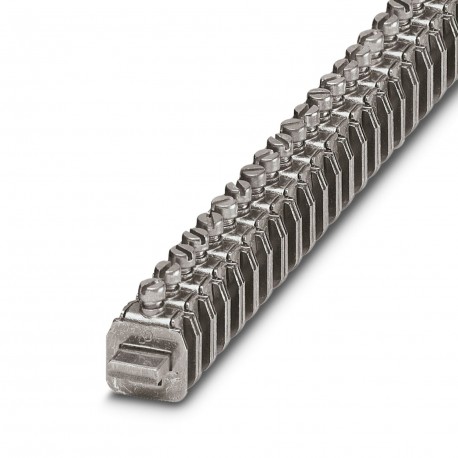

PHOENIX CONTACT AK 4 AK 4 0404017 PHOENIX CONTACT Connection terminal block, Connection method Screw connection, Cross section: 0.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AK 4 0404017 PHOENIX CONTACT Connection terminal block, Connection method Screw connection, Cross section: 0..

AK 4

0404017

PHOENIX CONTACT

50 Pcs.

Connection terminal block, Connection method Screw connection, Cross section: 0.5 mm² - 6 mm², Width: 7 mm, Color: silver Connection terminal, connection type: Screw connection, Dimensioning section: 4 mm², section: 0.5 mm² - 6 mm², mounting: Neutral busbar, color: silver Connection terminal block, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.5 mm2 - 6 mm2, mounting: Neutral busbar, color: silver

Automation > Busbar terminal
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePick-off terminal
Number of connections1
Number of rows1
Data management status
Article revision06
Electrical properties
Maximum load current41 A
Maximum power dissipation for nominal condition1.02 W
Nominal current IN32 A
Current carrying capacity of the neutral busbar140 A
Connection data
Nominal cross section4 mm²
Maximum load current41 A
Screw threadM4
Tightening torque1.5 ... 1.8 Nm
Stripping length16 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.5 mm² ... 6 mm²
Cross section AWG20 ... 10 (converted acc. to IEC)
Conductor cross section flexible0.5 mm² ... 4 mm²
Conductor cross section, flexible [AWG]20 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.5 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.5 mm² ... 6 mm²
2 conductors with same cross section, solid0.5 mm² ... 2.5 mm²
2 conductors with same cross section, flexible0.5 mm² ... 2.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.5 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 2.5 mm²
Nominal cross section4 mm²
Dimensions
Width7 mm
Height16 mm
Depth23.6 mm
Length16 mm
Material specifications
Colorsilver-colored
Electrical tests
ResultTest passed
Mechanical tests
Mechanical strength
ResultTest passed
Standards and regulations
Connection in acc. with standardIEC 60947-7-1
Mounting
Mounting typeNeutral busbar
