View larger
Images are for illustrative purposes only. Please refer to data sheet for details

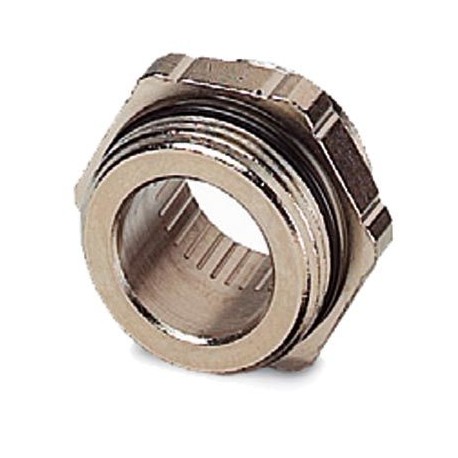

VC-M-KV-PG16/M25 ST 1644407 PHOENIX CONTACT Cable gland
VC-M-KV-PG16/M25 ST
1644407
PHOENIX CONTACT
10 Pcs.
Cable gland
Pg16/M25 cable gland tubing, metal; for M25 thread and sealing rubbers of size Pg16
Cables > Cable gland
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1644407 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 44 (C-2-2013) |
| GTIN | 4017918904708 |
| Weight per Piece (excluding packing) | 37.770 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Material | Brass, nickel-plated |
|---|---|
| O-ring material | NBR |
| Thread type on seal side | Pg16 |
| Thread type on connection side | M25 |
| Torque | 7.5 Nm |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141209eCl@ss 4.127141209eCl@ss 5.027149109eCl@ss 5.127149100eCl@ss 6.027149100eCl@ss 7.027149109eCl@ss 8.027149109eCl@ss 9.027144432
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | Metric |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Wrench width (EF000177) | 24 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Thermoplastic Elastomer (TPE) |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | Other |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Separable screw gland (EF005337) | No |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
