View larger
Images are for illustrative purposes only. Please refer to data sheet for details

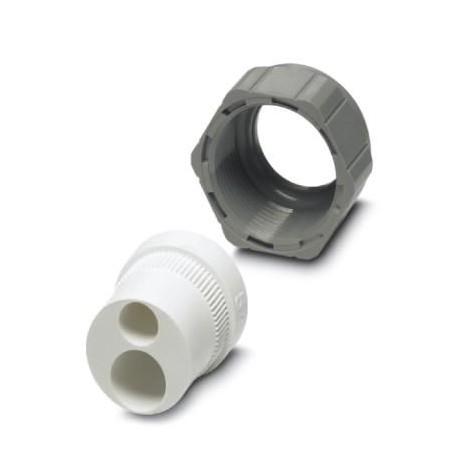

VC-K-KV-PG21-1X8,5/1X12 1885279 PHOENIX CONTACT Cable gland
VC-K-KV-PG21-1X8,5/1X12
1885279
PHOENIX CONTACT
5 Pcs.
Cable gland
Pg21 split cable gland, made of plastic, composed of sealing rubber with several holes (1 of 8.5 mm / 1 of 12 mm) and a clamping screw, for pipes for cable glands VC-M-KV-PG21.......
Cables > Cable gland
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1885279 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 47 (C-2-2013) |
| GTIN | 4017918176389 |
| Weight per Piece (excluding packing) | 16.230 g |
| Custom tariff number | 39269097 |
| Country of origin | PL (Poland) |
General
| Type of the screw connection | Half screw connection |
|---|---|
| No. of conductors | 2 |
| Material, pressure screw | Polyamide |
| Seal material | TPE |
| Sealing material | TPE |
| Shielded | no |
| Thread type on seal side | Pg21 |
| Tightening torque, union nut | 7.50 Nm |
Classifications
eCl@ss 4.027141209eCl@ss 4.127141209eCl@ss 5.027149109eCl@ss 5.127149100eCl@ss 6.027149100eCl@ss 7.027149109eCl@ss 8.027149109eCl@ss 9.027144432
| Feature Name | Feature Value |
|---|---|
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Wrench width (EF000177) | 33 mm |
| Suitable for cable diameter (EF005466) | 8 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Thermoplastic Elastomer (TPE) |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP67 |
| Model (EF000010) | Straight |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -20 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
