View larger
Images are for illustrative purposes only. Please refer to data sheet for details

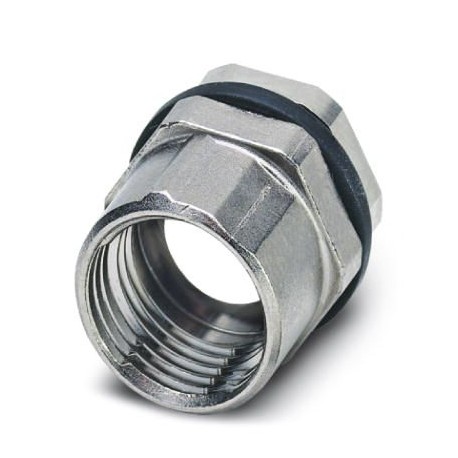

SACC-M12-SCO NUT L 90 1432460 PHOENIX CONTACT Housing screw connection
SACC-M12-SCO NUT L 90
1432460
PHOENIX CONTACT
10 Pcs.
Housing screw connection
Cable gland for housing, Front wall mounting, M12 x 1, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1237409
Connectors > Housing for circular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1432460 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 90 (C-2-2013) |
| GTIN | 4046356410731 |
| Weight per Piece (excluding packing) | 6.900 g |
| Custom tariff number | 79070000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
|---|---|
| -40 °C ... 85 °C (without mechanical actuation) | |
| Degree of protection | IP67 (correctly plugged in and locked) |
General
| Standards/regulations | IEC 61076-2-101 |
|---|---|
| Torque | 1.5 Nm ... 2 Nm (Installation-side) |
| Mounting type | M12 x 1 |
Material
| Contact material | CuZn |
|---|---|
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | Zinc die-cast, nickel-plated |
| Material | Zinc die-cast (nickel-plated) |
| Sealing material | EPDM (Internal O-ring) |
| HNBR (Flat gasket) |
Cable
| Standards/specifications | IEC 61076-2-101 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 85 °C (cable, fixed installation) |
| -25 °C ... 85 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
