View larger
Images are for illustrative purposes only. Please refer to data sheet for details

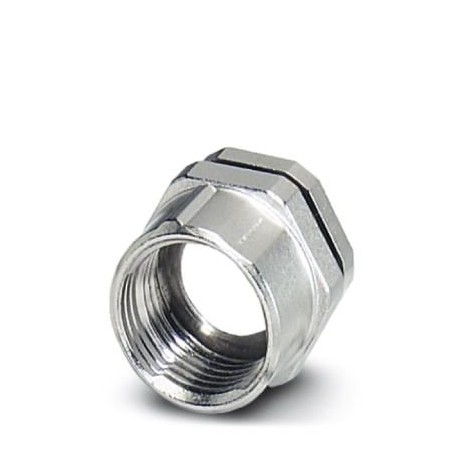

SACC-M12-SCO NUT 1552243 PHOENIX CONTACT Housing screw connection
SACC-M12-SCO NUT
1552243
PHOENIX CONTACT
60 Pcs.
Housing screw connection
Housing cable gland, Connecting female, M12-SPEEDCON, Front wall mounting, M12 x 1, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) 1237399
Connectors > Housing for circular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1552243 |
|---|---|
| Packing unit | 60 pc |
| Minimum order quantity | 60 pc |
| Catalog page | Page 258 (C-2-2013) |
| GTIN | 4046356162111 |
| Weight per Piece (excluding packing) | 6.390 g |
| Custom tariff number | 79070000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
|---|---|
| -40 °C ... 85 °C (without mechanical actuation) | |
| Degree of protection | IP67 (correctly plugged in and locked) |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Insertion/withdrawal cycles | > 100 |
| Torque | 1.5 Nm ... 2 Nm (Installation-side) |
| Mounting type | Front mounting M12 x 1 |
Material
| Material, knurls | Nickel-plated brass |
|---|---|
| Material | Zinc die-cast (nickel-plated) |
| Sealing material | EPDM |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
