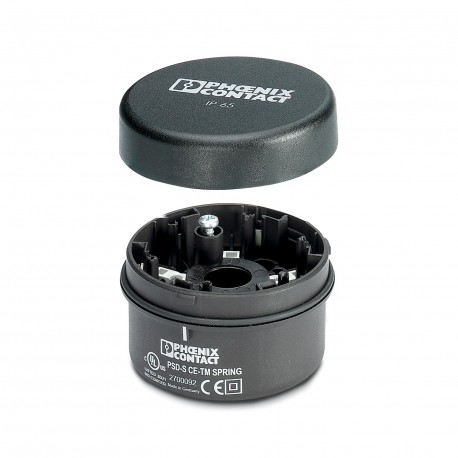

PSD-S CE-TM SPRING 2700092 PHOENIX CONTACT Connection element
PSD-S CE-TM SPRING
2700092
PHOENIX CONTACT
1 Pcs.
Connection element
Connecting element with spring-loaded terminal blocks for tube mounting
Automation > Connection module for signal tower
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Note on application | |
| Note on application | Only for industrial use |
Product properties
| Product type | Assembly element |
| Scope of delivery | End cover and seal |
| End cover and seal | |
| Number of mountable signal elements | max. 5 |
| Data management status | |
| Article revision | 00 |
Electrical properties
| General | |
| Nominal input voltage range | 12 V AC/DC ... 240 V AC/DC |
Connection data
| without ferrule | |
| Connection method | Spring-cage connection |
| Conductor cross section, flexible | 0.5 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | ... 15 |
| Stripping length | 7 mm |
| With ferrule | |
| Connection method | Spring-cage connection |
| Conductor cross section, flexible | 0.25 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | ... 15 |
| Stripping length | 7 mm |
| solid | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.5 mm² ... 1.5 mm² |
| Stripping length | 7 mm |
Dimensions
| Dimensional drawing |  |
| Height | 27 mm |
| Diameter | 69 mm |
Material specifications
| Color | black |
| Material | PA-GF |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65, when installed |
| Ambient temperature (operation) | -30 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC |
Mounting
| Mounting type | Tube mounting |
| Assembly note | Rubber seal pre-installed for each element |
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Connection type auxiliary circuit (EF006820) | Other |
| Suitable for tube mounting (EF001668) | Yes |
| Suitable for angle mounting (EF001669) | No |
| Colour (EF000007) | Black |
| Suitable for AS interface (EF005768) | No |
