View larger
Images are for illustrative purposes only. Please refer to data sheet for details

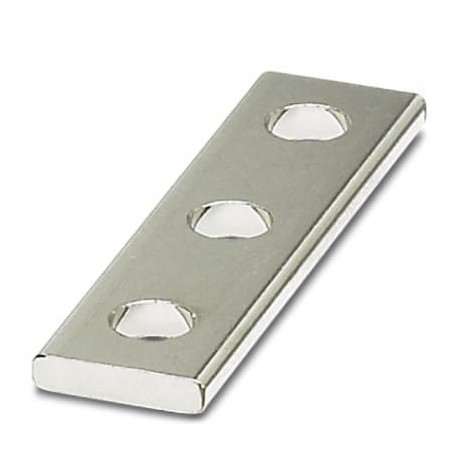

HV M6/1-VS 3 3049275 PHOENIX CONTACT Connection element
HV M6/1-VS 3
3049275
PHOENIX CONTACT
10 Pcs.
Connection element
Connecting element, length: 50 mm, width: 15 mm, height: 4 mm, number of poles: 3, colour: silver
Automation > Installation clamp for meters
Enclosures connectivity
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3049275 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 551 (C-1-2017) |
| GTIN | 4046356313674 |
| Weight per Piece (excluding packing) | 22.860 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Technical data
| Color | silver |
|---|---|
| Material | Copper |
| Number of positions | 3 |
| Length | 50 mm |
| Height | 4 mm |
| Width | 15 mm |
| Hole diameter | 6.6 mm |
| Drill hole spacing | 18 mm |
| Maximum load current | 125 A |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
