View larger
Images are for illustrative purposes only. Please refer to data sheet for details

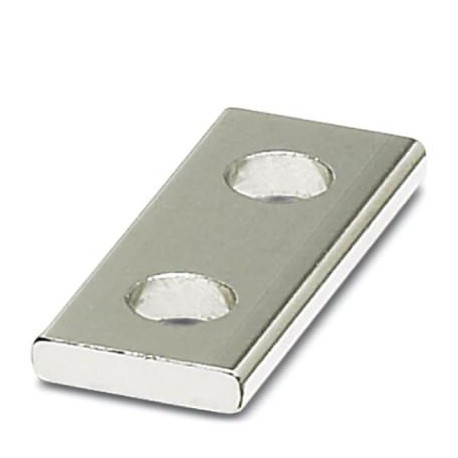

HV M6/1-VS 2 3049262 PHOENIX CONTACT Connection element
HV M6/1-VS 2
3049262
PHOENIX CONTACT
10 Pcs.
Connection element
Connecting element, length: 91.3 mm, width: 42.8 mm, height: 11.4 mm, number of poles: 2, colour: silver
Automation > Installation clamp for meters
Enclosures connectivity
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3049262 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 551 (C-1-2017) |
| GTIN | 4046356313568 |
| Weight per Piece (excluding packing) | 14.380 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Technical data
| Color | silver |
|---|---|
| Material | Copper |
| Number of positions | 2 |
| Length | 91.3 mm |
| Height | 11.4 mm |
| Width | 42.8 mm |
| Hole diameter | 6.6 mm |
| Drill hole spacing | 18 mm |
| Maximum load current | 125 A |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 10.0.127141190eCl@ss 4.027141111eCl@ss 4.127141111eCl@ss 5.027141133eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141190eCl@ss 8.027141190eCl@ss 9.027141190
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | No |
| Spare part (EF013237) | No |
