View larger
Images are for illustrative purposes only. Please refer to data sheet for details

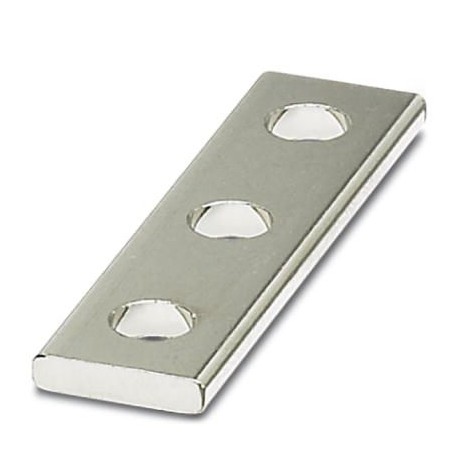

HV M5/1-VS 3 3049440 PHOENIX CONTACT Connection element
HV M5/1-VS 3
3049440
PHOENIX CONTACT
10 Pcs.
Connection element
Connecting element, length: 42 mm, width: 12 mm, height: 4 mm, number of poles: 3, colour: silver
Automation > Installation clamp for meters
Enclosures connectivity
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3049440 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 552 (C-1-2017) |
| GTIN | 4046356313551 |
| Weight per Piece (excluding packing) | 15.300 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Technical data
| Color | silver |
|---|---|
| Material | Copper |
| Number of positions | 3 |
| Length | 42 mm |
| Height | 4 mm |
| Width | 12 mm |
| Hole diameter | 5.6 mm |
| Drill hole spacing | 15 mm |
| Maximum load current | 76 A |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
