View larger
Images are for illustrative purposes only. Please refer to data sheet for details

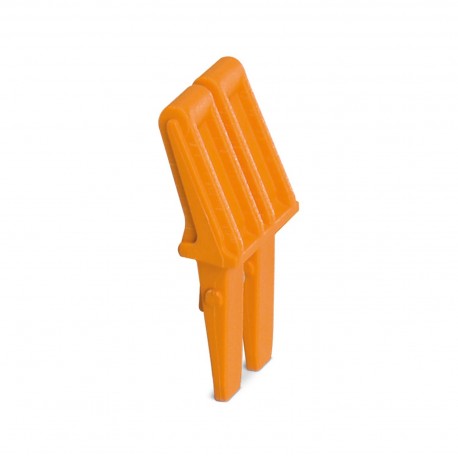

C-ME 4/2 3035759 PHOENIX CONTACT Connecting bridge
C-ME 4/2
3035759
PHOENIX CONTACT
10 Pcs.
Connecting bridge
Connection bridge for coupling 2 interruptible terminals for measuring circuits
Connection bridge, for connecting 2 test disconnect terminal blocks
Automation > Accessories/spare parts for terminals
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Switch module |
| Number of positions | 2 |
| Data management status | |
| Article revision | 01 |
Dimensions
| Width | 12.2 mm |
| Height | 5.2 mm |
| Depth | 23.8 mm |
Material specifications
| Color | orange (RAL 2003) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
