View larger
Images are for illustrative purposes only. Please refer to data sheet for details

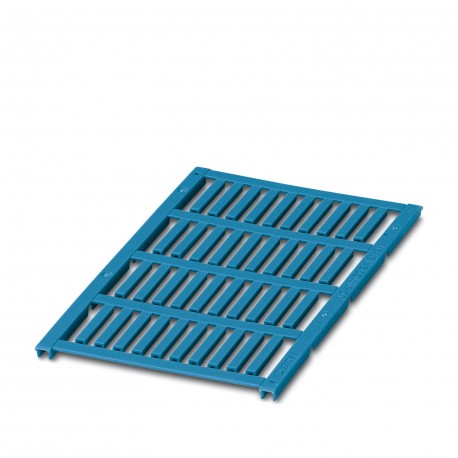

UC-WMCO 2,1 (21X3) BU CUS 0829055 PHOENIX CONTACT Conductor marker
UC-WMCO 2,1 (21X3) BU CUS
0829055
PHOENIX CONTACT
1 Pcs.
Conductor marker
Conductor marker, available: by mats, blue, labeled according to customer indications, mounting class: slippage, cable diameter range: 1.6 ... 2.1 mm, usable surface: 21 x 3 mm, Number of individual indices: 40
Conductor marker, can be ordered: by sheet, blue, labeled according to customer specifications, mounting type: slide-on, cable diameter range: 1.6 ... 2.1 mm, Number of individual labels: 40
Cables > Cable coding system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Labeled conductor marker |
| Type | Card form |
| Data management status | |
| Article revision | 01 |
| Marking | |
| Number of individual labels | 40 |
| Number of individual labels per row | 10 |
| Identification technology | UV LED technology |
Mounting
| Mounting type | slide-on |
Material specifications
| RoHS compliant | yes |
| Color | blue (RAL 5015) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 120 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Components | free from silicone and halogen |
Environmental and real-life conditions
| Test for substances that would hinder coating with paint or varnish | |
| Result | Test passed |
| UV resistance | |
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 120 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Dimensions
| Width | 3 mm |
| Length | 21 mm |
| External dimensions | |
| Outside diameter | 1.6 mm ... 2.1 mm |
Standards and regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
