View larger
Images are for illustrative purposes only. Please refer to data sheet for details

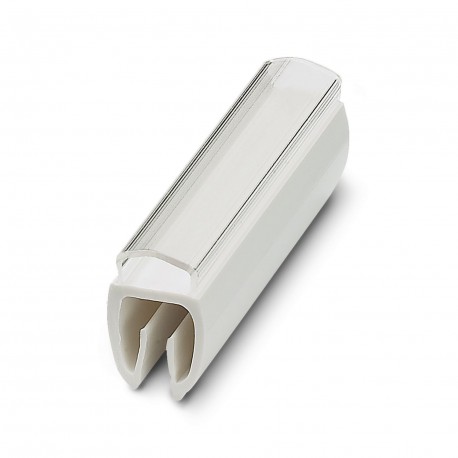

PATO 2/12 0827082 PHOENIX CONTACT Conductor marker carrier
PATO 2/12
0827082
PHOENIX CONTACT
1000 Pcs.
Conductor marker carrier
Support for conductor signaling, transparent, unlabeled, mounting class: hook, cable diameter range: 2.8 ... 4.4 mm, usable surface: 4 x 12 mm
Driver signalling bracket, transparent, unlabelled, mounting class: snap, cable diameter range: 2.8 ... 4.4 mm, text field height: 4 mm, text field width: 12 mm
Automation > Mounting for labelling material
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0827082 |
|---|---|
| Packing unit | 1000 pc |
| Minimum order quantity | 1000 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 257 (C-3-2017) |
| GTIN | 4046356416740 |
| Weight per Piece (excluding packing) | 0.250 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
General
| Color | transparent |
|---|---|
| Type | Profile |
| Components | Silicone-free |
| Flammability rating according to UL 94 | V0 |
| Material | PVC |
| Marking mounting type | clip on |
Environmental Product Compliance
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
|---|
