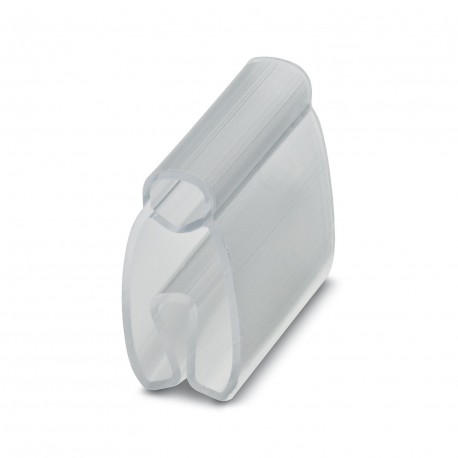

PATG 4/18 0820549 PHOENIX CONTACT Conductor marker carrier
PATG 4/18
0820549
PHOENIX CONTACT
500 Pcs.
Conductor marker carrier
Support for conductor signaling, transparent, unlabeled, mounting class: slip, cable diameter range: 6 ... 10 mm, usable surface: 18 x 4 mm
Holder for conductor signalling, transparent, unlabelled, mounting class: slip, cable diameter range: 6 ... 10 mm, text field height: 4 mm
Automation > Mounting for labelling material
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0820549 |
|---|---|
| Packing unit | 500 pc |
| Minimum order quantity | 500 pc |
| Catalog page | Page 256 (C-3-2017) |
| GTIN | 4046356294782 |
| Weight per Piece (excluding packing) | 0.690 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
General
| Color | transparent |
|---|---|
| Type | Profile |
| Components | Silicone-free |
| Flammability rating according to UL 94 | V0 |
| Material | PVC |
| RoHS compliant | Yes |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Marking mounting type | slide on |
| Min. cross section | 6 mm² |
| Max. cross section | 10 mm² |
