View larger
Images are for illustrative purposes only. Please refer to data sheet for details

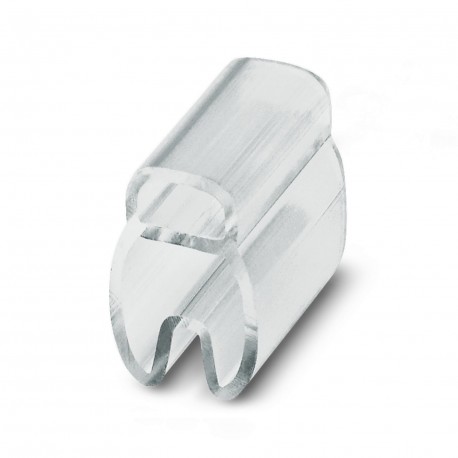

PATG 3/10 1013821 PHOENIX CONTACT Conductor marker carrier
PATG 3/10
1013821
PHOENIX CONTACT
500 Pcs.
Conductor marker carrier
Holder for conductor signalling, transparent, unlabelled, mounting class: slip, cable diameter range: 4 ... 7 mm, usable area: 10x4mm
Conductor marker carrier, transparent, unlabeled, mounting type: slide-on, cable diameter range: 4 ... 7 mm, text field height: 4 mm, text field width: 10 mm
Automation > Mounting for labelling material
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Marker carrier cable |
| Type | Profile |
| Data management status | |
| Article revision | 05 |
Dimensions
| Width | 7.5 mm |
| Text field width | 10.00 mm |
| Text field height | 4.00 mm |
| Length | 10 mm |
| External dimensions | |
| Outside diameter | 4 mm ... 7 mm |
| External diameter min. | 4 mm |
| External diameter max. | 7 mm |
Material specifications
| RoHS compliant | yes |
| Color | transparent |
| Material | PVC |
| Flammability rating according to UL 94 | V0 |
| Components | Silicone-free |
Cable/line
| External cable diameter | 4 mm ... 7 mm |
Environmental and real-life conditions
| Test for substances that would hinder coating with paint or varnish | |
| Result | Test passed |
| Ambient conditions | |
| Ambient temperature (operation) | -50 °C ... 80 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Mounting
| Mounting type | slide-on |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Other |
| Width (EF000008) | 7.5 mm |
| Self adhesive mounting (EF000097) | No |
