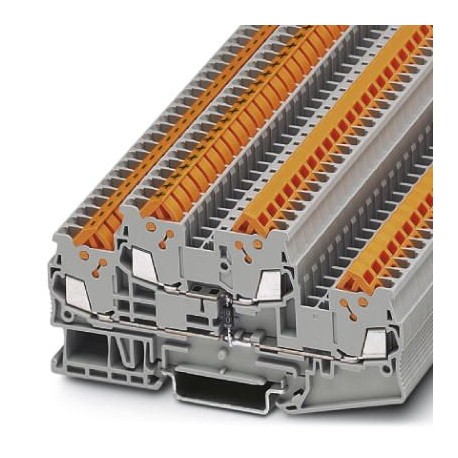

PHOENIX CONTACT QTTCB 1,5-DIO/O-U QTTCB 1,5-DIO/O-U 3206241 PHOENIX CONTACT Component terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QTTCB 1,5-DIO/O-U 3206241 PHOENIX CONTACT Component terminal block

QTTCB 1,5-DIO/O-U

3206241

PHOENIX CONTACT

50 Pcs.

Component terminal block Terminal block for components, with integrated diode, nominal voltage: 500 V, nominal current: 17.5 A, connection type: Quick connect, 1st and 2nd floor, Dimensioning cross-section: 1.5 mm², cross-section: 0.25 mm² - 1.5 mm², mounting class: NS 35/7.5, NS 35/15, colour: grey

Automation > Component terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3206241
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 205 (C-1-2017)
GTIN4017918936228
Weight per Piece (excluding packing)17.200 g
Custom tariff number85369010
Country of originCN (China)

General

Number of positions2
Number of levels2
Number of connections4
Nominal cross section1.5 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.56 W (the value is multiplied when connecting multiple levels)
Maximum load current17.5 A (with 1.5 mm² conductor cross section)
Nominal current IN17.5 A
Nominal voltage UN500 V
Open side panelYes
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width5.2 mm
End cover width2.2 mm
Length99.6 mm
Height NS 35/7,549.9 mm
Height NS 35/1557.4 mm

Connection data

Connection methodQuick connection
Conductor cross section solid min.0.25 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16
Conductor cross section flexible min.0.25 mm²
Conductor cross section flexible max.1.5 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible16
Material wire insulationPVC / PE
Structure of individual litz in acc. with VDE 0295 / smallest wire diameterVDE 0295 Cl.1-5

Standards and Regulations

Connection in acc. with standardCSA
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3206241 Terminal blocks (EC000903)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.25 mm²
Rated current In (EF008250) 17.5 A
Rated voltage (EF000228) 500 V
Type of electrical connection 1 (EF002526) Other
Number of levels (EF002659) 2
Number of clamp positions per level (EF002660) 2
Internally connected stages (EF002661) No
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 5.2 mm
Height (EF000040) 99.6 mm
Depth (EF000049) 49.9 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Grey
