PHOENIX CONTACT ME 17,5 TBUS 1,5/ 5-ST-3,81 KMGY ME 17,5 TBUS 1,5/ 5-ST-3,81 KMGY 2713645 PHOENIX CONTACT DIN rail bus connectors View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ME 17,5 TBUS 1,5/ 5-ST-3,81 KMGY 2713645 PHOENIX CONTACT DIN rail bus connectors

ME 17,5 TBUS 1,5/ 5-ST-3,81 KMGY

2713645

PHOENIX CONTACT

50 Pcs.

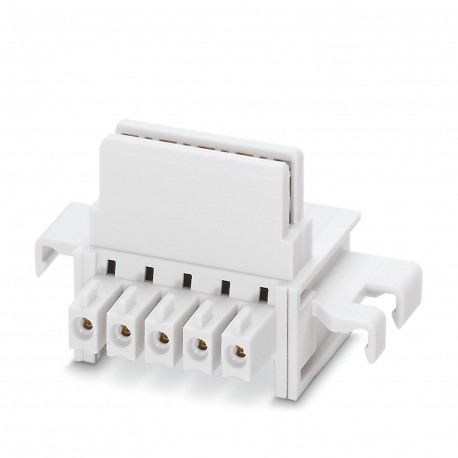

DIN rail bus connectors Rail bus connectors, color: bright gray, rated current: 8 A (parallel contacts), rated voltage (III/2): 125 V, number of poles: 5, pitch: 3.81 mm, mounting: Rail mounting, locking: without, fixing type: without, packaging type: packed in box, Items with gold contacts, bus connectors for connection with electronics boxes, 5 contacts in parallel DIN rail connector, color: light gray, nominal current: 8 A (parallel contacts), rated voltage (III/2): 125 V, number of positions: 5, product range: TBUS5-17,5.., pitch: 3.81 mm, mounting: DIN rail mounting, locking: without, mounting: without, type of packaging: packed in cardboard, Item with gold-plated contacts, bus connectors for connecting with electronics housings, 5 parallel contacts

Connectors > Printed circuit board connector
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
RecommendationMaterial of contact pads for bus connector, galvanic gold (hard gold)
Product properties
Product typeDIN rail connector
Product familyTBUS5-17,5..
Number of positions5
Pitch3.81 mm
Data management status
Article revision10
Electrical properties
Nominal current IN8 A (parallel contacts)
Nominal voltage UN125 V
Contact resistance4.4 mΩ
Rated surge voltage (III/3)2.5 kV
Rated voltage (III/2)125 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV
Connection data
Maximum load current8 A
Material specifications
Material data - contact
Contact materialCu alloy
Surface characteristicsgold-plated
Material data - housing
Color (Housing)light gray (7035)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
material specifications - connector
Color ()()
Dimensions
Pitch3.81 mm
Width [w]24.2 mm
Height [h]36.3 mm
Length [l]20.45 mm
Mounting
Mounting typeDIN rail mounting
Mechanical tests
Insertion and withdrawal forces
ResultTest passed
No. of cycles25
Insertion strength per pos. approx.6 N
Withdraw strength per pos. approx.5 N
Contact holder in insert
SpecificationIEC 60512-15-1:2008-05
Contact holder in insert
Requirements >20 N		Test passed
Polarization and coding
SpecificationIEC 60512-13-5:2006-02
ResultTest passed
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 500 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis (pos. and neg.)
Durability test
SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level2.95 kV
Contact resistance R14.4 mΩ
Contact resistance R24.5 mΩ
Insertion/withdrawal cycles25
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage1.39 kV
Glow-wire test
SpecificationIEC 60695-2-10:2013-04
Temperature850 °C
Time of exposure30 s
Shocks
SpecificationIEC 60068-2-27:2008-02
Pulse shapeSemi-sinusoidal
Acceleration15g
Shock duration11 ms
Test directionsX-, Y- and Z-axis (pos. and neg.)
Ambient conditions
Ambient temperature (operation)-40 °C ... 105 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 55 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Electrical tests
Thermal test Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions5
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
minimum clearance value - non-homogenous field (III/3)1.5 mm
minimum creepage distance (III/3)1.9 mm
Rated insulation voltage (III/2)125 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)0.75 mm
Rated insulation voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)1.6 mm
Packaging specifications
Type of packagingpacked in cardboard
Outer packaging typeCarton

ETIM for 2713645 Connectors (EC002637)
Feature Name Feature Value
Modular spacing contacts (EF007326) 3.81 mm
Modular spacing connections (EF006827) 3.81 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 125 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Type of electric connection (EF003961) Other
Suitable for PCB thickness (EF007253) 1.8 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Grey
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
