View larger
Images are for illustrative purposes only. Please refer to data sheet for details

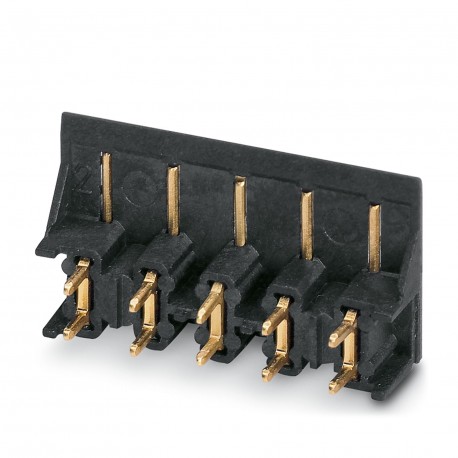

ME TBUS PST 1,5/ 5-3,81 2279033 PHOENIX CONTACT Contact strip
ME TBUS PST 1,5/ 5-3,81
2279033
PHOENIX CONTACT
50 Pcs.
Contact strip
Male connector for soldering on the printed circuit board, for contacting on the bus connector for symmetrical rails
Pin-Strip plug to be soldered into the DC board, to make contacts with the bus connector for support rail
Connectors > Printed circuit board connector
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2279033 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 684 (C-1-2013) |
| GTIN | 4046356180573 |
| Weight per Piece (excluding packing) | 1.050 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Modular spacing contacts (EF007326) | 3.81 mm |
| Modular spacing connections (EF006827) | 3.81 mm |
| Rated current In (EF008250) | 6 A |
| Rated voltage (EF000228) | 125 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Type of electric connection (EF003961) | Other |
| Length pin (EF006825) | 2.05 mm |
| Suitable for PCB thickness (EF007253) | 1.8 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
