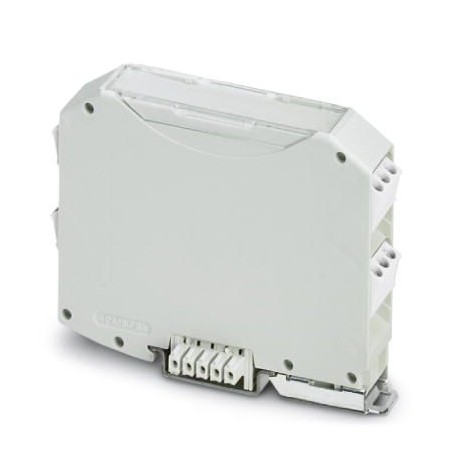

ME MAX 17,5 SF G 2-2 KMGY 2901369 PHOENIX CONTACT Electronic housing
ME MAX 17,5 SF G 2-2 KMGY
2901369
PHOENIX CONTACT
10 Pcs.
Electronic housing
Rail housing, Full housing with metal pin, super-flat design, no vent slits, width: 17.6 mm, height: 85 mm, depth: 69.55 mm, color: light gray (7035), cross bridge: Rail bus connector (optional), number of poles cross connector: 5
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2901369 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 685 (C-1-2013) |
| GTIN | 4046356178525 |
| Weight per Piece (excluding packing) | 26.600 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | Electronic housing |
|---|---|
| Type | ME MAX 17,5 SF G 2-2 KMGY |
| Order No. | 2901369 |
| Housing type | DIN rail housing |
| Type | Ultra-flat design |
| Max. IP code to attain | IP20 |
| Mounting type | DIN rail mounting |
| Number of levels | 2 |
| Ventilation openings present | no |
| Max. number of positions | 16 (pitch: 3.5 mm) |
| 12 (pitch: 5 mm) | |
| 8 (pitch: 7.25 mm/7.5 mm) |
Dimensions
| Dimensional drawing | |
|---|---|
| Width [ w ] | 17.5 mm |
| Height [ h ] | 85 mm |
| Depth [ d ] | 70.4 mm |
| Depth from top edge of DIN rail [ d ] | 62.9 mm |
Material data
| Color (RAL) | light gray (7035) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 80 % |
PCB data
| Number of PCB holders | 1 |
|---|---|
| PCB thickness | 1.4 mm ... 1.8 mm |
| Mounting position | Vertical (horizontal DIN rail) |
| Type of PCB mount | Latching |
Power dissipation, single housing at 20 °C
| Ambient temperature | 20 °C |
|---|---|
| Reduction factor | 1 |
| Mounting position | vertical |
Power dissipation, single housing at 30 °C
| Ambient temperature | 30 °C |
|---|---|
| Reduction factor | 0.91 |
| Mounting position | vertical |
Power dissipation, single housing at 40 °C
| Ambient temperature | 40 °C |
|---|---|
| Reduction factor | 0.81 |
| Mounting position | vertical |
Power dissipation, single housing at 50 °C
| Ambient temperature | 50 °C |
|---|---|
| Reduction factor | 0.72 |
| Mounting position | vertical |
Power dissipation, single housing at 60 °C
| Ambient temperature | 60 °C |
|---|---|
| Reduction factor | 0.63 |
| Mounting position | vertical |
General information
| Type of note | Assembly instruction: |
|---|---|
| Note | Refer to the data sheet for the range in the download area. |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 10 |
| Denomination packing units | Pcs. |
| Outer packaging type | Carton |
Standards and regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 17.6 mm |
| Height (EF000040) | 85 mm |
| Depth (EF000049) | 69.55 mm |
| Material (EF002169) | Other |
| Operating temperature (EF002393) | -40 °C |
| With integrated PCB-mounting connection system (EF003087) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| With ventilation slots (EF007346) | No |
| Degree of protection (IP) (EF005474) | IP20 |
