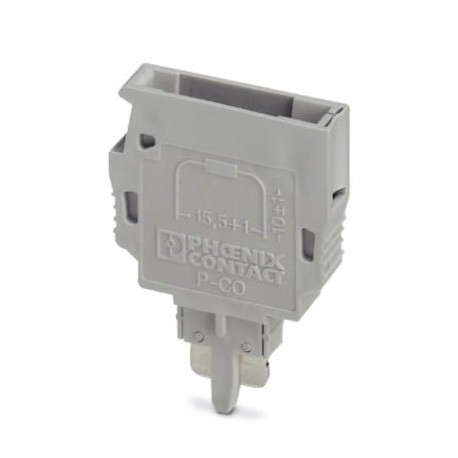

PHOENIX CONTACT P-CO P-CO 3036796 PHOENIX CONTACT Component connector

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

P-CO 3036796 PHOENIX CONTACT Component connector

Name: P-CO 3036796 PHOENIX CONTACT Component connector
Brand: PHOENIX CONTACT
SKU: 3036796

Reference: P-CO

Code: 3036796

Manufacturer: PHOENIX CONTACT

Units per package: 10 Pcs.

Description:

Component connector Component connector, for mounting self-selecting components, rated voltage: 250 V, rated current: 6 A, connection type: Plug-in connection, pitch: 5.2 mm, length: 24.2 mm, width: 5.1 mm, height: 24.2 mm, number of poles: 1, color: gray, mounting class: Plug-in (Slot)

Categories:
Automation > Component plug terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	3036796
Packing unit	10 pc
Minimum order quantity	10 pc
Catalog page	Page 410 (C-1-2017)
GTIN	4017918929145
Weight per Piece (excluding packing)	3.510 g
Custom tariff number	85366990
Country of origin	PL (Poland)

General

Note	Notes on operation Components with a wire diameter from 0.5 mm up to 0.8 mm can be used
Number of positions	1
Potentials	1
Color	gray
Insulating material	PA
Flammability rating according to UL 94	V0

Dimensions

Width	5.1 mm
Length	24.2 mm
Height	33.3 mm
Pitch	5.2 mm

General

Maximum load current	6 A
Nominal current I_N	6 A
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Static insulating material application in cold	-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)	Test passed
Flame test method (DIN EN 60695-11-10)	V0
Oxygen index (DIN EN ISO 4589-2)	>32 %
NF F16-101, NF F10-102 Class I	2
NF F16-101, NF F10-102 Class F	2
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3

Connection data

Connection method	Plug connection

Standards and Regulations

Connection in acc. with standard	CSA
Flammability rating according to UL 94	V0
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
