View larger
Images are for illustrative purposes only. Please refer to data sheet for details

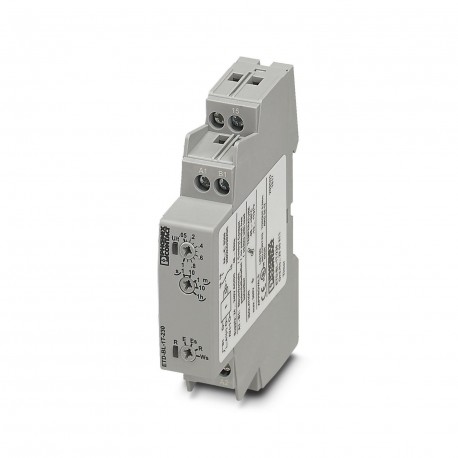

ETD-BL-1T-230 2905813 PHOENIX CONTACT Timer relay
ETD-BL-1T-230
2905813
PHOENIX CONTACT
1 Pcs.
Timer relay
Compact multifunction timing relay with 4 functions and an adjustable time range (50 ms - 1 h), with screw connection, 1 switched contact
Automation > Timer relay
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Timer relay |
| Operating mode | 100% operating factor |
| Mechanical service life | 15x 106cycles |
| Data management status | |
| Article revision | 00 |
| Insulation characteristics | |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Service life electrical | 1x 105cycles |
| Nominal frequency | 48 Hz ... 63 Hz |
| Nominal power consumption | 4 VA |
| Test voltage relay winding/relay contact | 4 kV |
Input data
| Nominal power consumption | 4 VA |
| Input voltage range | 24 V AC/DC ... 240 V AC/DC -15 % ... +10 % |
| Temperature coefficient, typical | ≤ 0.01 %/K |
| Recovery time | 100 ms |
| Function | E: With switch-on delay |
| Rs: With release delay and control contact | |
| Es: With switch-on delay and control contact | |
| Ws: With single shot leading edge and control contact | |
| Setting range time | 50 ms ... 1 h (5 time end ranges) |
| Basic accuracy | ± 1 % (of scale end value) |
| Setting accuracy | ≤ 5 % (of scale end value) |
| Repeat accuracy | ≤ 0.5 % ±5 ms |
| Control | |
| Connection name | Non-floating, terminals A1-B1 |
| Control pulse length | ≥ 50 ms (DC) |
| ≥ 100 ms (AC) | |
Output data
| Switching | |
| Contact switching type | 1 floating changeover contact |
| Maximum switching voltage | 250 V AC (in acc. with IEC 60664-1) |
| Interrupting rating (ohmic load) max. | 1250 VA (5 A / 250 V AC) |
| Output fuse | 5 A (fast-blow) |
Connection data
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Conductor cross section AWG | 20 ... 14 |
| Tightening torque | 1 Nm ... 1 Nm |
Signaling
| Status display | Green LED (POWER) |
| Yellow LED (relay active) |
Dimensions
| Width | 17.5 mm |
| Height | 89.5 mm |
| Depth | 65.5 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection (Housing) | IP40 (Housing) |
| Degree of protection (Connection terminal blocks) | IP20 (Connection terminal blocks) |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 15 % ... 85 % |
Approvals
| CE | |
| Certificate | CE-compliant |
| UKCA | |
| Certificate | UKCA-compliant |
| UL, USA/Canada | |
| Identification | UL 508 Listed |
EMC data
| Electromagnetic compatibility | Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Noise immunity | EN 61000-6-2 |
| Noise emission | EN 61000-6-3 |
Standards and regulations
| Standards/regulations | EN 50178 |
Mounting
| Mounting type | DIN rail mounting |
| Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Suitable for front mounting (EF020288) | No |
| Time range (EF003384) | 0.05 s |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Width (EF000008) | 17.5 mm |
| Height (EF000040) | 89.5 mm |
| Depth (EF000049) | 65.5 mm |
