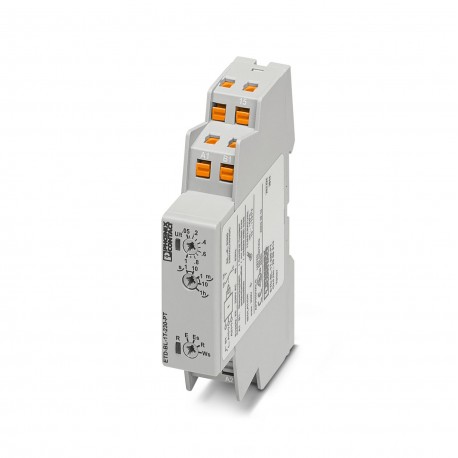

PHOENIX CONTACT ETD-BL-1T-230-PT ETD-BL-1T-230-PT 2905814 PHOENIX CONTACT Timer relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ETD-BL-1T-230-PT 2905814 PHOENIX CONTACT Timer relay

ETD-BL-1T-230-PT

2905814

PHOENIX CONTACT

1 Pcs.

Timer relay Compact multifunction timing relay with 4 functions and an adjustable time range (50 ms - 1 h), with push-in connection, 1 switched contact

Automation > Timer relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2905814
Packing unit1 pc
Catalog pagePage 272 (C-5-2017)
GTIN4055626003344
Weight per Piece (excluding packing)71.290 g
Custom tariff number85364900
Country of originAT (Austria)

Dimensions

Width17.5 mm
Height88 mm
Depth65.5 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 55 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C
Permissible humidity (operation)15 % ... 85 %
Noise immunityEN 61000-6-2

Coil side

Input voltage range24 V DC ... 240 V DC -20 % ... +25 %
Temperature sensitivity≤ 0.01 %/K
FunctionE: With switch-on delay
Rs: With release delay and control contact
Es: With switch-on delay and control contact
Ws: With single shot leading edge and control contact
Time setting range50 ms ... 1 h (5 time end ranges)
Recovery time100 ms

Contact side

Contact type1 floating PDT
Maximum switching voltage250 V AC (in acc. with IEC 60664-1)
Interrupting rating (ohmic load) max.1250 VA (5 A / 250 V AC)
Output fuse5 A (fast-blow)

General

Status displayGreen LED (POWER)
Yellow LED (relay active)
Mechanical service life15x 106cycles
Test voltage relay winding/relay contact4 kV
Mounting positionany
Assembly instructionson standard DIN rail NS 35 in accordance with EN 60715
Colorgray
Permissible humidity (operation)15 % ... 85 %
Nominal frequency48 Hz ... 63 Hz
ConformanceCE-compliant
UL, USA/CanadaUL 508 Listed

Connection data

Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.14
Stripping length8 mm
Connection methodPush-in connection

Control contact

Connection nameNon-floating, terminals A1-B1
Control pulse length≥ 50 ms (DC)
≥ 100 ms (AC)

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 61000-6-3
Noise immunityEN 61000-6-2
Low Voltage DirectiveConformance with Low Voltage Directive 2006/95/EC (valid until 2016-04-19) / 2014/35/EU (valid from 2016-04-20)
Flammability rating according to UL 94V0
ConformanceCE-compliant
UL, USA/CanadaUL 508 Listed

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2905814 Relays (EC001439)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Suitable for DIN rail (top hat rail) mounting (EF007250) Yes
Suitable for front mounting (EF020288) No
Time range (EF003384) 0.05 s
Voltage type for actuating (EF008242) AC/DC
Number of outputs, undelayed, normally closed contact (EF006835) 0
Number of outputs, undelayed, normally open contact (EF006836) 0
Number of outputs, undelayed, change-over contact (EF006837) 0
Width (EF000008) 17.5 mm
Height (EF000040) 89.5 mm
Depth (EF000049) 65.5 mm
