VIP-2/SC/FLK50/AB-1756 2322317 PHOENIX CONTACT Passive module

VIP-2/SC/FLK50/AB-1756

2322317

PHOENIX CONTACT

1 Pcs.

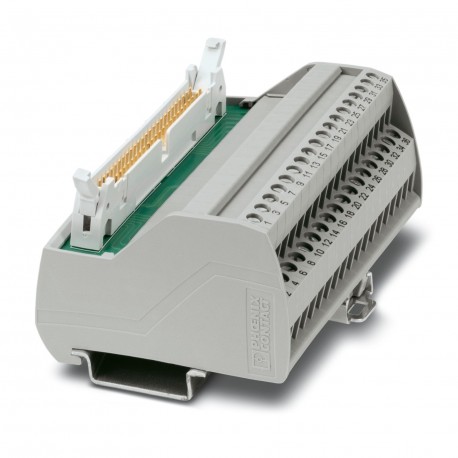

Passive module VARIOFACE-COMPACT-LINE, Allen-Bradley Controll-Logix signal transfer module, with Controll-Logix-specific labeling

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2322317
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 474 (C-5-2017)
GTIN4046356451000
Weight per Piece (excluding packing)196.700 g
Custom tariff number85366990
Country of originUS (United States)

Dimensions

Width95.9 mm
Height65.5 mm
Depth56 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage60 V AC/DC
Max. perm. current (per branch)1 A
Number of positions50
Status displayNo
Mounting positionany

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM 3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Number of positions50

Connection data for connection 2

Connection nameController level
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions50
Pitch2.54 mm

Supported controller

ControllerALLEN-BRADLEY ControlLogix
- suitable I/O card1756-IA16I
1756-IB16D
1756-IB16I
1756-IB32
1756-IH16I
1756-OB32
1756-IF8
1756-IF16
1756-HSC
1756-M02AE
ControllerHONEYWELL Experion PKS C200
- suitable I/O cardTC-IDK 161
TC-IDX 161
TC-IDJ 161
TC-IDD 321
TC-ODD 321
TC-IAH 161

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated surge voltage0.6 kV
Degree of pollution2
Overvoltage categoryII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2322317 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 50
Rated voltage (EF000228) 25 V
Rated current (EF000227) 1 A
Depth (EF000049) 56 mm
Width (EF000008) 95.9 mm
Height (EF000040) 65.5 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
